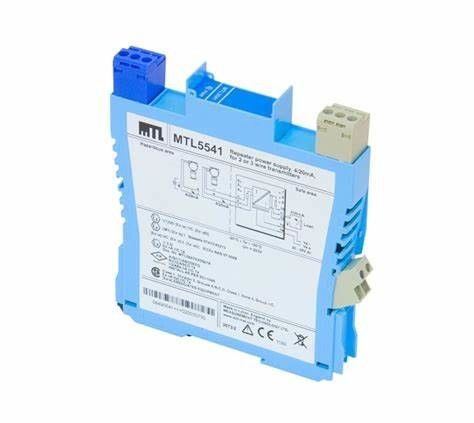

MTL 5541 Repeater Power Supply 20-35VDC DIN Rail

Quick Detail of Repeater Power Supply

Manufacturer : MTL Instruments
Product No. : MTL5541
Product Type : Repeater Power Supply
Number of channels : One
Location of transmitter : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Safe-area circuit ripple : < 50µA peak-to-peak
Transfer accuracy at 20°C : Better than 15µA
Temperature drift : < 0.8µA/°C
Response time : Settles to within 10% of final value within 50µs
Communications supported : HART® (terminals 1 & 2 only)
LED indicator : Green: power indication
Maximum current consumption (with 20mA signal) : 51mA at 24V
Dimensions (LxWxH) : 1.58 cm x 10.98 cm x 12.36 cm
Weight : 0.11 Kg

Description of Repeater Power Supply

The MTLx541 provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter, which is located in a hazardous area, and repeats the current in another floating circuit to drive a safe-area load. For HART 2-wire transmitters, the unit allows bi-directional communications signals superimposed on the 4/20mA loop current. Alternatively, the MTLx541S acts as a current sink for a safe-area connection rather than driving a current into the load.

Specification of Repeater Power Supply
