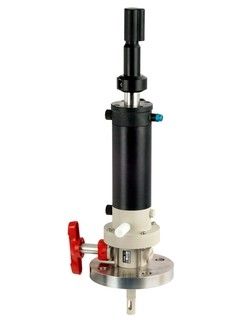

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7
  • Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number CPA474-A2A2C3G7
Product Details
Assembly:
Manual
Application; Actuator::
Max. 130oC 10bar; Stainless + Tape Wiper
Electrode Type:
Glass Electrode + ISFET, Gel
Electrode Holder; Ball Valve:
PVDF; PVDF; 130oC.
Seal:
FFKM / Kalrez
Highlight:

Automatic Retractable Assembly

,

Manual Retractable Assembly

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7





Process Connection Flange DN50 PN16
Equipment, in-/outlet safty cleaning connection G1/4
HS-Code 90279000

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7 0

Specs at a glance

  • Process temperature

    PA version: max. 80 °C (max. 176 °F)
    Stainless steel pressure cylinder: max. 120 °C (248 °F)

  • Process pressure

    PA pressure cylinder: max. 6 bar (87 psi)
    Stainless steel pressure cylinder: max. 10 bar (145 psi) at 40 °C (104 °F

Field of application

The Cleanfit CPA474 retractable assembly is designed for applications which require safe separation from the process and contain media that could affect stainless steel. It offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.


Cleanfit CPA474 is intended for use in tanks and pipes in:

  • Chemical industry

  • Wastewater / industrial water

  • Power plants

  • Refuse incinerators

It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).

Benefits

  • Safe and reliable separation from the process by ball valve, even under harsh conditions

  • Suitable for corrosive media: Only polymers (PP, PVDF, PEEK) in contact with medium

  • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

  • Extended operating life of electrodes due to automatic cleaning

  • Flexible adaptation to all applications by great variety of materials and process connections

Predecessor


Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7 1

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7 2
