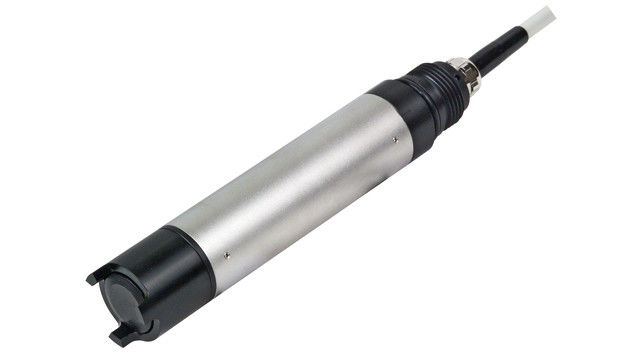

Endress+Hauser COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D

Description:

Memosens optical oxygen sensor for water, wastewater and utilities

Product name : Oxymax COS61D

Order code : COS61D-AAA1A3

AA-Approval : Non-hazardous area

A1-Application/Measuring Range : Oxygen 0...20mg/l

A-Sensor Adaption : Fixed cable; crimp sleeves

3-Cable length:7m

Weight

With cable length 7 m (23 ft): 0.7 kg (1.5 lbs.)

With cable length 15 m (49 ft): 1.1 kg (2.4 lbs.)

Materials

Process connection: G1, NPT 3/4"

Sensor cable : shielded 4-core fixed cable

Cable connection to the transmitter

• Terminal connection

• optional: M12 plug

Maximum cable length : max. 100 m (330 ft, (including cable extension))

Temperature compensation : internal

Actual Dimension Standard Packing Box : 37 X 35 X 70 cm

Shipping Weight : 5.2 Kg

Additional Informaiton:

Memosens optical oxygen sensor for water, wastewater and utilities
Oxymax COS61D is a high-performance, digital oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling. The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement. Thanks to Memosens digital technology, the Oxymax COS61D combines maximum process and data integrity, and facilitates simple lab calibration.

Benefits

Minimum maintenance, maximum availability

Fast, drift-free measurement for precise aeration control and process monitoring

Long-term stability for increased process safety

Outstanding performance in all aeration processes (SBR, Anamox, etc.)

Chemical-free: no electrolyte handling

Show less

Field of application

Oxymax COS61D measures the dissolved oxygen concentration in:

Wastewater treatment plants:
- O2 control in the aeration basin
- Process water treatment and monitoring

Water works:
- Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
- Water quality monitoring in rivers, lakes or seas

Utilities of all industries:
- O2 control in the biological treatment
- Process water treatment and monitoring

Fish farming:
- O2 control for optimum growth conditions

Show less


Features and specifications

Oxygen
Measuring principle
Optical oxygen measurement

Application
Aeration tank, river monitoring, water treatment, fish farming

Characteristic
