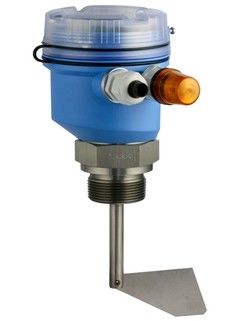

3" Point Level Switch Soliswitch FTE20 Rotary Paddle Switch FTE20-BI13AA11

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number FTE20-BI13AA11
Product Details
Measuring Principle:
Paddle
Specialities:
Rotation Monitoring System Fold-away Paddle
Ambient Temperature:
-20 °C ... 60 °C (-4 °F ... 140 °F)
Process Temperature:
-20 °C ... 80 °C (-4 °F ... 170 °F)
Process Pressure / Max. Overpressure Limit:
0.5 Bar To 1.5 Bar (7 Psi ... 22 Psi)
Main Wetted Parts:
1.4305
Highlight:

3" point level switch

,

3" soliswitch

,

3" rotary paddle switch

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description

Point level switch Soliswitch FTE20 Rotary paddle switch FTE20-BI13AA11


Max. tensile strength

Rope version >1500N

Components

HAW569 Surge arrester

Sensor length

75 mm (3")


3" Point Level Switch Soliswitch FTE20 Rotary Paddle Switch FTE20-BI13AA11 03" Point Level Switch Soliswitch FTE20 Rotary Paddle Switch FTE20-BI13AA11 1

Specs at a glance

  • Process temperature

    -20 °C ... 80 °C (-4 °F ... 170 °F)

  • Process pressure / max. overpressure limit

    0.5 bar to 1.5 bar (7 psi ... 22 psi)

  • Min. density of medium

    >= 80 g/l

Field of application

The economical Soliswitch FTE20 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized polymers make the unit outstandingly robust and therefore suitable for use in dust explosive areas according the latest standards.


  • Process connections: NPT 1½", PBT; NPT 1¼", PBT; G 1½", PBT; NPT 1½", 1.4305; NPT 1¼", 1.4305; G 1½", 1.4305

  • Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2000 mm (80") (can be shortened)

  • Medium temperature: -20 to +80 °C (-4 to +170 °F)

  • Process pressure range (absolute): 0.5 to 2.5 bar (7 to 36 psi)

  • ATEX II 1/3 D, CSA DIP/ II, III/1/E-G, FM DIP/ II, III/1/E-G

Benefits

  • Safety comes first - Overfill prevention with an automatic rotation monitoring system

  • Optical rotation control for a fast and easy check either for installation or for trouble shooting

  • Extremely robust polymer housing with the latest dust Ex certification for ATEX, FM and CSA

  • Cost savings over the whole life cycle:
    Fast order process due to E-direct
    Quick installation
    Fast trouble shooting concept without the need of demounting
    Best price performance ratio in the market

  • Adjustment to weight of solids without the need for tools

  • Housing can be rotated 360° to enable optimal alignment following installation.


Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
