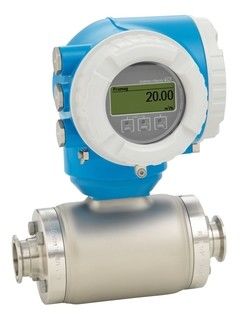

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
  • Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
  • Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
  • Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
  • Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number 5H3B65-AAIBAEAFAAFDASGAA1
Product Details
Volume Flow (standard):
±0.5 % O.r.± 1 Mm/s (0.04 In/s)
Measuring Range:
0.06 Dm³/min To 600 M³/h (0.015 Gal/min To 2 650 Gal/min)
Medium Temperature Range:
–20 To +150 °C (–4 To +302 °F)
Max. Process Pressure:
PN 40, Class 150, 20K
Measuring Principle:
Electromagnetic
Nominal Diameter Range:
DN 2 To 150 (¹⁄₁₂ To 6")
Highlight:

rohs e&h mag flow meter

,

picomag e&h mag flow meter

,

h 300 picomag flow meter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description

Proline Promag H 300 electromagnetic flowmeter 5H3B65-AAIBAEAFAAFDASGAA1

Max. process pressure

 PN 40, Class 150, 20K

Medium temperature range

 –20 to +150 °C (–4 to +302 °F)

Sensor housing material

 1.4301 (304), corrosion resistant



Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 0Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 1



Specs at a glance

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
    Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • Measuring range

    0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)

  • Medium temperature range

    –20 to +150 °C (–4 to +302 °F)

  • Max. process pressure

    PN 40, Class 150, 20K

  • Wetted materials

    Liner: PFA
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
    Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
    Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
    Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Field of application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.



  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to demanding applications in the food and beverage as well as in life sciences industries

Device properties

  • Liner made of PFA

  • Sensor housing made of stainless steel (3A, EHEDG)

  • Wetted materials CIP, SIP cleanable

  • Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available

Benefits

  • Flexible installation concept – numerous hygienic process connections

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)





Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.



Q: How long warranty?

A: One-year warranty.



Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.



Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB



Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.



Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 2

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 3
