ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E
  • ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E
  • ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E

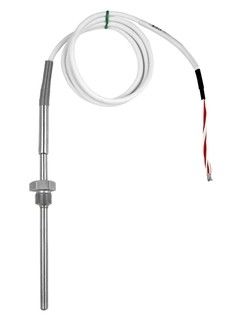

ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number TST310-B1A1A4D1B1E
Product Details
Accuracy:
Class A Acc. To IEC 60751
Response Time:
T50 = 3 S T90 = 6 S
Max. Process Pressure (static):
At 20°C: Up To 75 Bar
Operating Temperature Range:
PT 100: -50 °C ...400 °C (-58 °F ...752 °F)
Max. Immersion Length On Request:
Up To 10.000,00 Mm (393,70'')
Measuring Principle:
Resistance Temperature Detector
Highlight:

TST310 rtd temp probe

,

IEC 60751 rtd temp probe

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description

TST310 RTD thermometer, temperature cable probe E+H Instrument TST310-B1A1A4D1B1E


Insert / probe

mineral insulated (MI), flexible

Outer diameter

3,0 mm (0,12'')

Max. immersion length on request

up to 10.000,00 mm (393,70'')


ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E 0ENDRESS HAUSER TST310 Rtd Temp Probe E+H Instrument TST310-B1A1A4D1B1E 1


Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    t50 = 3 s
    t90 = 6 s

  • Max. process pressure (static)

    at 20°C: up to 75 bar (depending on the process connection)

  • Operating temperature range

    PT 100:
    -50 °C ...400 °C
    (-58 °F ...752 °F)

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

Field of application

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.


The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.

Benefits

  • High flexibility through user-specific insertion lengths and variable process connections

  • Fast response time

  • Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)

  • Marine approval

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
