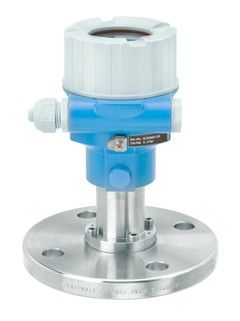

Absolute And Gauge Pressure Cerabar PMC51 PMC51-7901/101
Material process membrane
|
Ceramic
|
Measuring cell
|
100 mbar...40 bar |
Supply voltage
|
4...20 mA HART |
Specs at a glance
-
Accuracy
Standard 0.1%
Platinum 0.075%
-
Process temperature
-20°C...130°C
(-4°F...266°F)
-
Pressure measuring range
100 mbar...40 bar
(1.5psi...600psi)
-
Process pressure / max. overpressure limit
-
Main wetted parts
Ceraphire
Sealing
Alloy C276
316L
-
Max. measurement distance
-
Material process membrane
-
Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute
Field of application
The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
-
Process connections: Threads, flanges or hygienic connections
-
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
-
Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
-
Accuracy: ±0.1%, "Platinum" ±0.075%
-
International explosion protection certificates, SIL, hygienic approvals, marine approvals
Benefits
-
Best fit for vacuum applications and applications with corrosive and abrasive media
-
Process safety through membrane breakage detection
-
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
-
Condensation resistant also for hygienic applications
-
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
-
Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
-
Available with mounted manifolds: always fit, always tested for leaks
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
