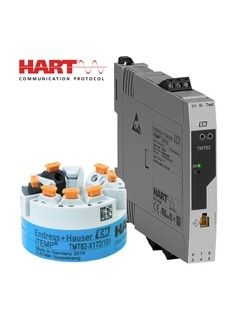

iTEMP TMT82 7 temperature transmitter TMT82-AAA1CD2TRTRA2
Galvanic isolation
|
Yes |
Accuracy
|
(Pt100, -50...200 °C) <= 0,1 K |
Communication
|
HART-protocol |
Specs at a glance
-
Accuracy
(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F
Field of application
The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.
-
Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL
-
2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol
-
Suited for use in marine applications
-
Installation in explosion proof field housings;
-
Protection class up to IP 68
-
Fits in flat-face terminal heads as per DIN EN 50446
-
Cabinet or DIN rail mounting; width: 17.5 mm
Benefits
-
Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
-
SIL certification up to SIL2, SC3 according to IEC 61508:2010
-
Versatile mounting and housing options:
terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)
-
Transmitter-sensor matching for highest measurement accuracy
-
Sensor and hardware failure detection; diagnostic status information
according to NAMUR NE 107
-
Time-saving installation: Tool-free wiring with push-in terminal technology
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
