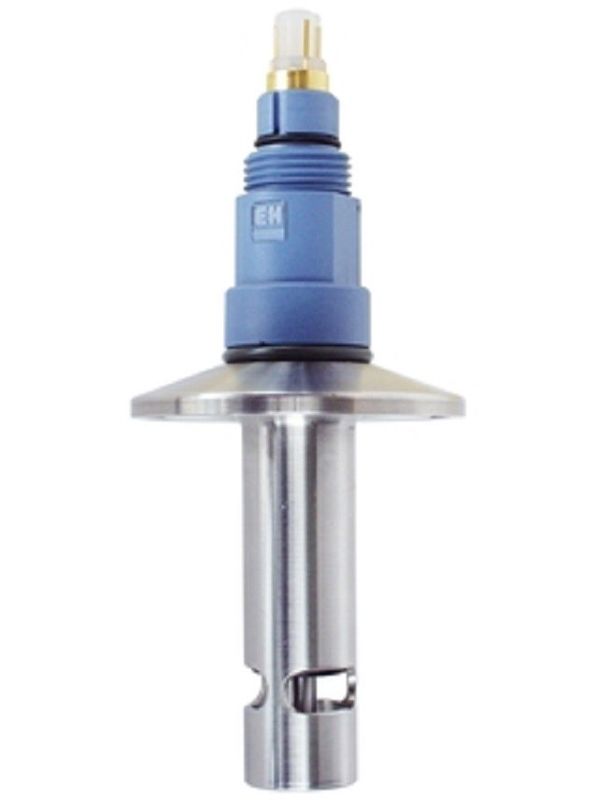

CLS16-3D3A1P Analog Conductivity Sensor Condumax CLS16

CLS16-3D3A1P Analog Conductivity Sensor Condumax CLS16

Process Connection:  3D  Clamp ISO2852 1-1/2"
Cable Connection:  3  10m fixed cable
Temperature Sensor:  A  Pt100
Additional Option:  1P  Basic version

Specs at a glance
Measurement range
k=0,1: 0,04µS/cm - 500µS/cm

Process temperature
Max. 120°C (150°C/30 min)
max. 248°F (302°F/30 min.)

Process pressure
max. 12 bar at 20°C
max.174 psi at 68°F

Field of application
Condumax CLS16 is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process.

Condumax CLS16 measures conductivity in pure and ultrapure water applications for the monitoring and control of:

• Ion exchangers
• Reverse osmosis
• Distillation
• Electro-deionizing

Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM and CSA, the sensor is suitable for hazardous area use.

Benefits

• Highest precision and measuring accuracy
• Hygienic design certified by EHEDG
• Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials
• Sterilizable
• Quality certificate stating the individual cell constant
