Detailed Product Description
| Max. Measurement Error: |
±0,5% O.r. ± 2 Mm/s (±0,5% O.r. ± 0,08 In/s) |
Measuring Range: |
9 Dm3/min To 110 000 M3/h (2.5 Gal/min To 700 Mgal/day) |
| Medium Temperature Range: |
'0 To +80 °C (+32 To +176 °F), –20 To +50 °C (–4 To +122 °F) |
Max. Process Pressure: |
PN 40, Class 300, 20K |
| Wetted Materials: |
Liner: Polyurethane; Hard Rubber |
Origin: |
France |
| Model: |
10W1H-HC0A1AA0A4AA |
Shipping Weight: |
18kg |
| High Light: |
Proline Promag E&H Instrument
,
Promag E&H Instrument
,
10W Endress Hauser Electromagnetic Flow Meter
|

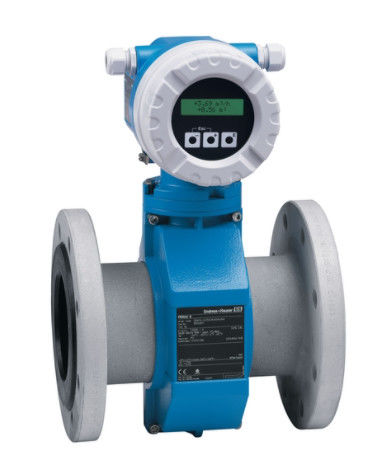

Endress+Hauser Proline Promag 10W Electromagnetic flowmeter 10W1H
Flowmeter for basic water and wastewater applications with a highly cost-efficient transmitter
Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10W offers accurate measurement of liquids for a wide range of applications. It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10W is available as compact or remote version.
Specs at a glance
Max. measurement error
±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)
Measuring range
9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)
Medium temperature range
'0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F)
Max. process pressure
PN 40, Class 300, 20K
Wetted materials
Liner: polyurethane; hard rubber
Benefits
Flexible engineering – sensor with fixed or lap-joint process connections
Reliable measurement – accurate measured values even with 0 x DN inlet run
Improved plant availability – sensor compliant with industry-specific requirements
Cost-effective – designed for easy applications and direct integration
Safe operation – display provides easy readable process information
Fully industry compliant – IEC/EN/NAMUR
Field of application
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Suitable for elementary measurement tasks such as raw water intake
Device properties
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)
2-line display with push buttons
Device as compact or remote version
HART
Tag:
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
