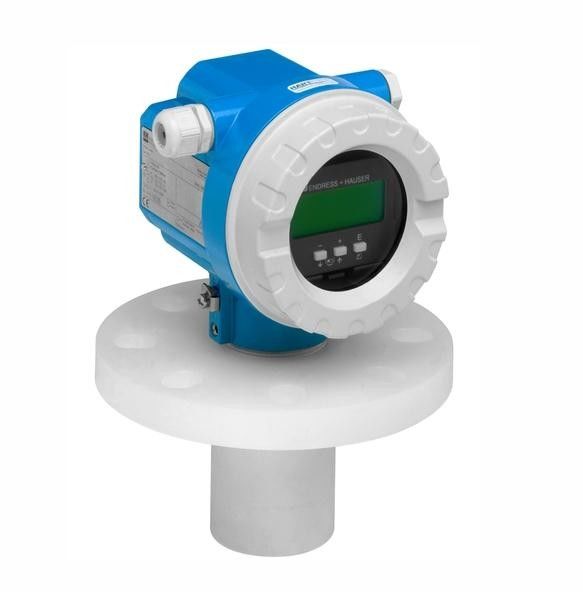

Endress Hauser E&H Instrument Ultrasonic Time Of Flight Prosonic FMU42-APB2A22A

E+H Ultrasonic Measurement Time-Of-Flight Prosonic FMU42-APB2A22A

Description:

Manufacturer : Endress+Hauser
Product No. : FMU42-APB2A22A
Product type : Ultrasonic measurement Time-of-Flight Prosonic FMU42
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 10m

A-Approval:Non-hazardous area

P-Process Connection:UNI flange 3"/DN80/80, PP max 2.5bar abs./ 36psia, suitable for NPS 3" Cl.150 / DN80 PN16 / 10K 80

B-Power Supply; Output: 2-wire, 4-20mA HART

2-Operation : 4-line display VU331, envelope curve display on site

A-Housing: F12 Alu, coated, IP68 NEMA6P

2-Cable Entry : Gland M20 (EEx d > thread M20)

2-Process Sealing Sensor / Flange: FKM Viton

A-Additional Option: Basic version

Weight kg (lbs) : approx. 3 (6.62)

Shipping Weight : 4 Kg

Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 10m
The Prosonic FMU42 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Specs at a glance
Accuracy
+/- 4 mm or +/- 0,2 % of set measuring range

Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)

Process pressure absolute / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi)

Max. measurement distance:5 m (16 ft)
Main wetted parts:PVDF

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.

Q: How long warranty?

A: One-year warranty.

Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.

Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB

Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.

Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
