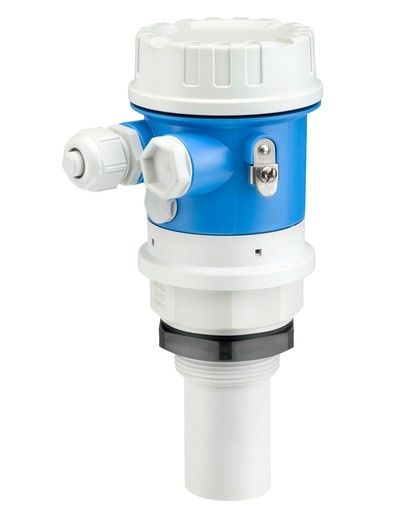

Ultrasonic Measurement Fmu30-AAHEAAGGF Cost Effective All-Round Instrument

Ultrasonic Measurement Fmu30-AAHEAAGGF Cost Effective All-Round Instrument

Description:
Manufacturer : Endress+Hauser

Product No. : FMU30-AAHEAAGGF

Product type : Ultrasonic measurement Time-of-Flight Prosonic

AA - Approval : Non-hazardous area

H - Display Operating : Envelope curve display on site; push button

E - Electrical COnnection : Gland M20, IP68

AA - Sensor; Max range; Blocking Distance : 1-1/2"; 5m liquid/2m solid; 0.25m

GGF - Process connection : Thread ISO228 G1-1/2, PP

Shipping weight : 3.5 Kg

Additional Informaiton:

Cost effective all-round instrument for level applications in liquids and bulk solids

The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.

Specs at a glance
Accuracy
+/- 3 mm or +/- 0.2 % of set measuring range

Process temperature
-20 °C ... 60 °C
(-4 °F ... 140 °F)

Process pressure absolute / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 44 psi)

Max. measurement distance
Sensor 1-1/2": 2 m (6.6 ft)
Sensor 2": 3.5 m (11 ft)

Main wetted parts
PP/EPDM

Benefits
Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable

Envelope curves on the on-site display for simple diagnosis

Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate

Non-contact measurement method minimizes service requirements

Installation possible from thread G 1½ or 1½ NPT upwards

Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)
