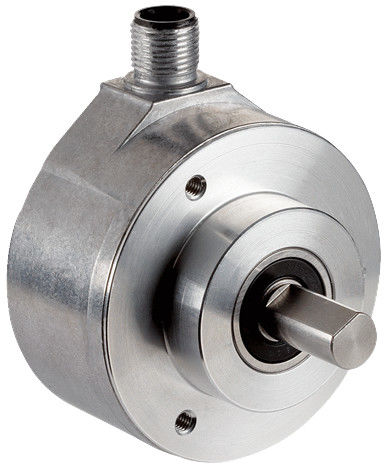

SICK AFM60B-S4AC004096 Encoders
Quick Detail of Encoders
EMC : (according to EN 61000-6-2 and EN 61000-6-3) 1
Enclosure rating : IP 65, shaft side (according to IEC 60529) 2),IP 67, housing side (according to IEC 60529)
Permissible relative humidity : 90 % (condensation of the optical scanning not permitted)
Working temperature range : –40 °C ... +100 °C
Storage temperature range : –40 °C ... +100 °C, without package
Resistance to shocks : 70 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration : 30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Specification of Encoders
Performance
| Max. number of steps per revolution |
4,096 |
| Max. number of revolutions |
4,096 |
| Resolution power |
4,096 x 4,096 |
| Resolution |
12 bit x 12 bit |
| Error limits |
± 0.05° |
| Repeat accuracy |
0.002° |
| Measuring step |
0.01° 360° / number of steps per revolution = 0.09° |
| Initialization time |
50 ms |
| Position forming time |
< 1 µs |
Interfaces
| Code type |
Gray |
| Code sequence |
CW/CCW parameter adjustable |
| Interface signals |
Clock +, Clock -, Data +, Data |
| Clock frequency |
2 MHz |
| Set (electronic adjustment) |
H-active (L=0-3V,H=4,0-Us V) |
| CW/CCW (counting sequence when turning |
L-active (L=0-1,5V, H=2,0-Us V) |
| Measuring step deviation |
±0.01° |
| Max. number of steps per revolution |
4,096 |
Electrical data
| Connection type |
Male connector, radial |
| Power consumption |
0.5W (without load) |
| Operating voltage range |
4.5 V DC ... 32 V DC |
| Reverse polarity protection |
√ |
| MTTFd: mean time to dangerous failure |
250 years (EN ISO 13849-1) |
