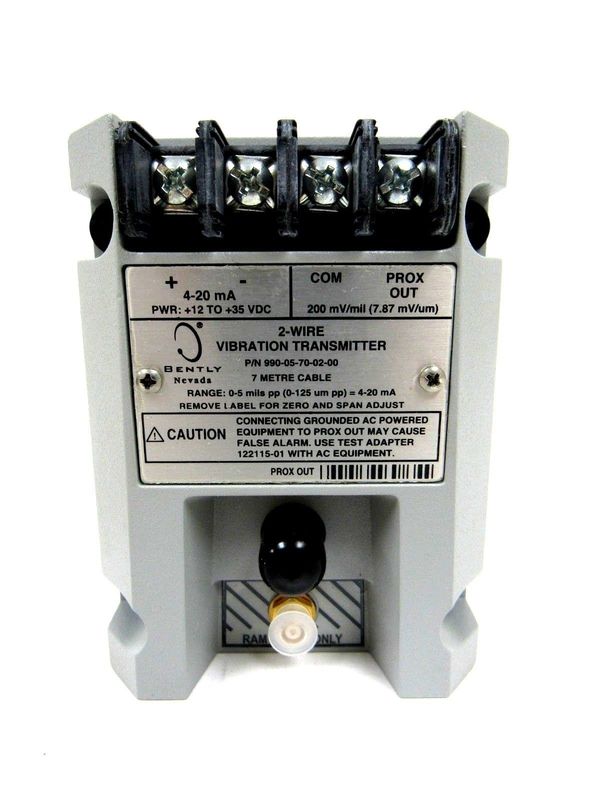

Bently Nevada 990-05-70-02-00 Vibration Transmitter
Quick Detail of Vibration Transmitter
Estimated Lead Time : 12 - 16 weeks.
Manufacturer : Bently Nevada
Product No. : 990-05-50-02-00
Product type : 990 Vibration Transmitter
Country of Origin: U.S.A
Can add on Certificate Of Origin (COO)
Full-scale Option : 05 = 0-5 mils pp (0-125 µm pp)
System Length Option : 50 = 5.0 metres (16.4 feet)
Mounting Option : 02 = Bulkhead screws
Agency Approval Option : 00 = Not required
Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power : Requires +12 to +35 Vdc input at the transmitter terminal.
Operating Temperature : -35 C to +85 C (-31 F to +185 F)
Storage Temperature : -51 C to +100 C (-60 F to +212 F)
Shipping weight : 1.5 Kg
Description of Vibration Transmitter
The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a 2-wire, looppowered device that accepts input from our 3300 NSv* proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
Specification of Vibration Transmitter
| Input |
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable |
| Power |
Requires +12 to +35 Vdc input at the transmitter terminal. |
|
4 to 20 mA Signal
Output
|
4 to 20 mAdc over specified full-scale range in 2-wire configuration. |
|
4 to 20 mA Loop
Accuracy
|
Within ±1.5% over specified full-scale range. Accuracy is rated from the TEST signal input to the voltage measured across a 250 loop resistance. |
| Probe Gap |
Probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target to ensure full scale range. |
|
Maximum Loop
Resistance
|
1,000 including cable at 35 Vdc. |
| Current Limiting |
23 mA typical. |
| Zero and Span |
Non-interacting external adjustments. |
|
NOT OK/Signal
Defeat
|
Signal output will go to less than 3.6 mA within 100 µs after a Not OK condition occurs. Signal output is restored within 2-3 seconds after the Not OK condition is removed. |
| Power-up Inhibit |
Signal output stays at less than 3.6 mA (NOT O.K.) for 2 to 3 seconds after power is applied. The purpose is to signal that the device is not yet ready. Transients may be observed when device goes O.K. |
|
Proximitor Sensor
Output
|
Compatible with ungrounded, portable test equipment. When using grounded, ac-powered test equipment, use the 122115-01 Test Adapter for signal isolation. |
| Output Impedance |
Prox Out has a 10 kW output impedance calibrated for a 10 M load. |
|
Prox Out Linear
Range
|
1.4 mm (55 mils). Begins at approximately 0.25 mm (10 mils) from target surface. |
|
Prox Out
Incremental Scale
Factor
|
7.87 mV/µm (200 mV/mil) ± 6.5% typical including interchangeability errors when measured in increments of 0.25 mm (10 mils) over the linear range using a flat 30 mm (1.2 inch)
target. Worst case 7.87 mV/µm ± 10%. Typical Noise Level: 50 mV/pp.
|
| Temperature Stability |
Incremental scale factor remains within ±10% of 7.87 mV/µm (200 mV/mil) from 0 C to +70 C (+32 F to +158 F). |
Feature of Vibration Transmitter
Integrated Proximitor Sensor Requires no External Unit
Non-Isolated PROX OUT and COM Terminals Plus a Coaxial Connector
Non-Interacting Zero and Span Potentiometers
Test Input Pin for Quick Verification of Loop Signal Output
Not OK/Signal Defeat Circuit Prevents High Outputs or False Alarms
Potted Construction for High Humidity Environments (Up to 100% Condensing)
