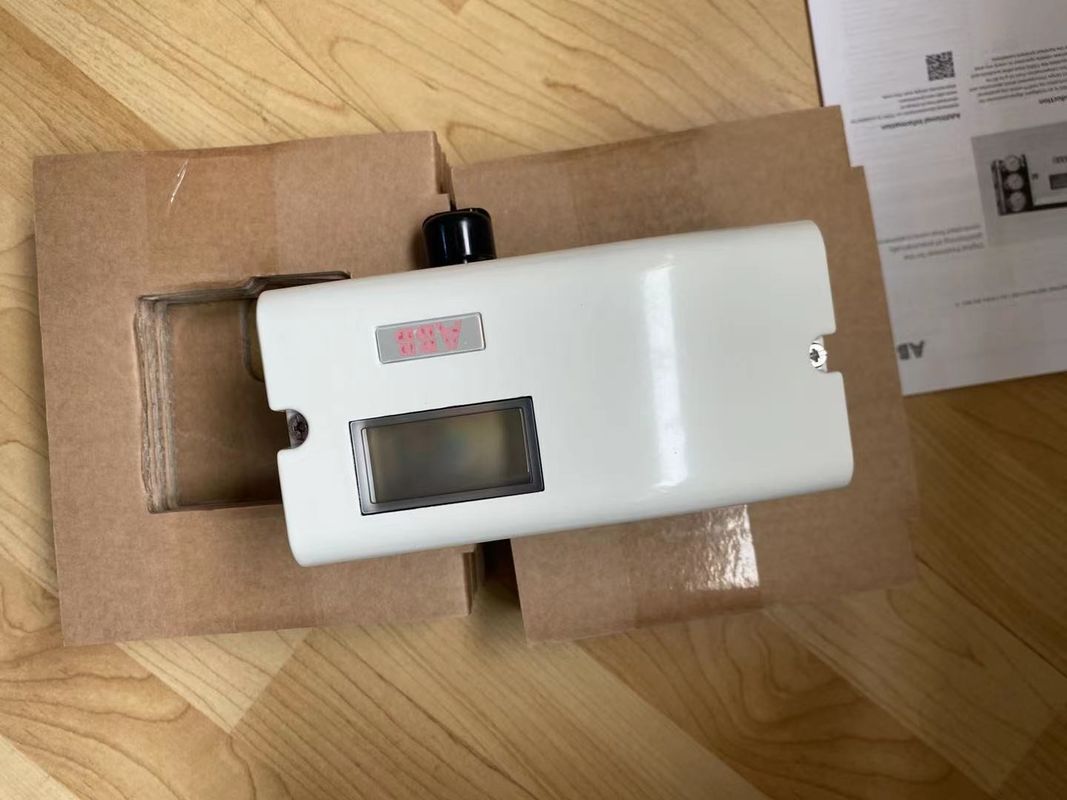

V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner
  • V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner
V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner

V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner

Place of Origin GERMANY
Brand Name ABB
Certification CE
Model Number V18345-2020460001
Product Details
Highlight:

Germany ABB V18345 Valve Positioner

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD980
Packaging Details
ABB Original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
100PCS/MONTH
Product Description

Part Number: V18345-2020460001

The TZID-C positioner is an intelligent and electronically config-
urable instrument with communication capabilities, mounting to
pneumatic actuators. The TZID-C stands out for a small and com-
pact design, a modular construction, and an unequalled cost-per-
formance ratio.
The functional heart of the TZID-C positioner is its microprocessor-
controlled CPU where the operating system is running. The
mechanical and pneumatic assembly groups only have secondary
functions. The input signal and the position feedback signal are
polled with a sampling rate of 20 ms and A/D conversion in 4000
steps and then processed. This ensures a rapid and high-precision
signal processing for the input and the position feedback. The
power for the CPU is derived from the input signal.
The operating program includes an Autoadjust routine for auto-
matic adjustment of the device in the commissioning phase, and
an adaptation program which provides for optimal control of the
position until reaching the set point.

Ordering Information
  • TZIDC-120 Intelligent Positioner: V18345 - intelligent, configurable with indicator and operator panel
  • Optional mechanical kit for digital position feedback: 2 - Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting with mechanical position indicator
  • 0: Always 0
  • Input / communication port: 2 - FSK module for HART communication
  • Explosion protection: 0 - without
  • Output / safe position (in case of an electrical failure): 4 - Single acting, fail freeze
  • Connections: 6 - Cable: Thread M20 x 1.5; Air pipe: Thread G 1/4
  • Option modules for analog or digital feedback: 0 - without
  • Optional mechanical kit for digital position feedback: 0 - without
  • 0: without
  • Design (varnish / coding): 1 - Standard

  • Availability: In Stock
  • Estimated Lead Time: Ships in 7 Working Days
  • Shipping Weight: 4 Kg
  • V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner 0
  • V18345-2020460001 TZID-C made in Germany ABB V18345 Valve Positioner 1
