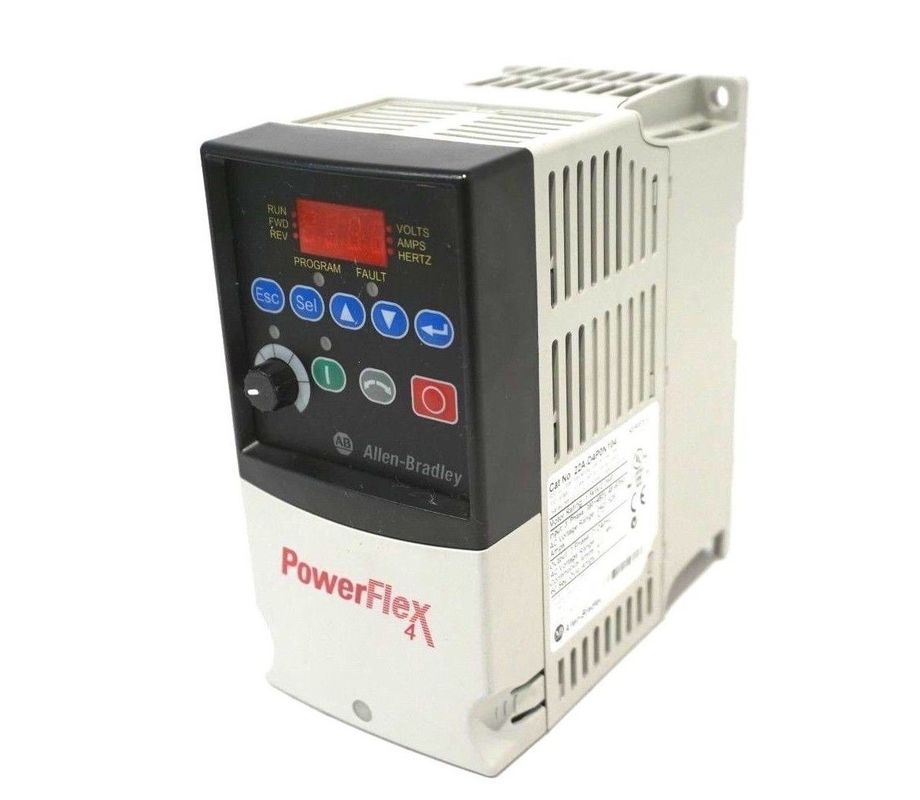

Variable Frequency Drive Allen Bradley Compactlogix PowerFlex 4 22A-D4P0N104

Voltage Tolerance:
Frequency Tolerance:
Displacement Power Factor:
Maximum Short Circuit Rating:

120V, 200…240V, 380…480V, 460…600V: ±10%
48…63 Hz
0.98 across entire speed range
100,000 Amps symmetrical

Digital
SRC (Source) Mode:
SNK (Sink) Mode:
Analog
4…20 mA Analog:
0…10V DC Analog:
External Pot:

Input Current = 6 mA
18…24V = On, 0…6V = Off
0…6V = On, 18…24V = Off
250 ohm input impedance
100k ohm input impedance
1…10k ohms, 2 Watt minimum

Control Output – Programmable
Outputs
(form C relay)

Resistive Rating
Opto Outputs:
Analog Outputs:
Inductive Rating
Opto Outputs:
Analog Outputs:

3.0A at 30V DC, 3.0A at 125V AC, 3.0A at 240V AC
30V DC, 50 mA
10-bit, 0…10V, 1k ohm minimum
0.5A at 30V DC, 0.5A at 125V AC, 0.5A at 240V AC
Non-inductive
10 bit, 4…20 mA, 525 ohm maximum

Recommended Fuse Type:
Recommended Circuit Breakers:

UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
HMCP circuit breaker or equivalent.


Motor Protection:
Overcurrent:
Control Ride Through:
Faultless Power Ride Through:

I2 t Overload Protection, 150% for 60 sec., 200% for 3 sec. (provides Class 10 protection)
200% hardware limit, 300% instantaneous fault
Minimum Ride Through is 0.5 sec. - typical value is 2 seconds
100 milliseconds


Internal brake IGBT included with all ratings.

Altitude:
Storage Temperature:
Atmosphere:
Relative Humidity:
Shock (operating):
Vibration (operating):

1000 m (3300 ft.) maximum without derating
–40 to 85 degrees C (–40 to 185 degrees F)
Important: Drive must not be installed in an area where the ambient atmosphere contains volatile or
corrosive gas, vapors or dust. If the drive is not going to be installed for a period of time, it must be
stored in an area where it will not be exposed to a corrosive atmosphere.
0 to 95% non-condensing
15G peak for 11ms duration (±1.0ms)
1G peak, 5 to 2000 Hz

Frequency Accuracy:
Speed Regulation:
Stop Modes:
Accel/Decel:
Intermittent Overload:
Electronic Motor Overload Protection:


Digital Input: Within ±0.05% of set output frequency.
Analog Input: Within 0.5% of maximum output frequency.
Analog Output: ±2% of full scale, 10-bit resolution.
Open Loop with Slip Compensation: ±2% of base speed across a 40:1 speed range. 1% of base speed
across a 60:1 speed range.
Multiple programmable stop modes including - Ramp, Coast, DC-Brake, Ramp-to-Hold and S Curve.
Two independently programmable accel and decel times. Each time may be programmed from 0…600
seconds in 0.1 second increments.
150% overload capability for up to 1 minute, 200% overload capability for up to 3 seconds.
Provides class 10 motor overload protection according to NEC article 430 and motor over-temperature
protection according to NEC article 430.126 (A) (2). UL 508C File 29572.
