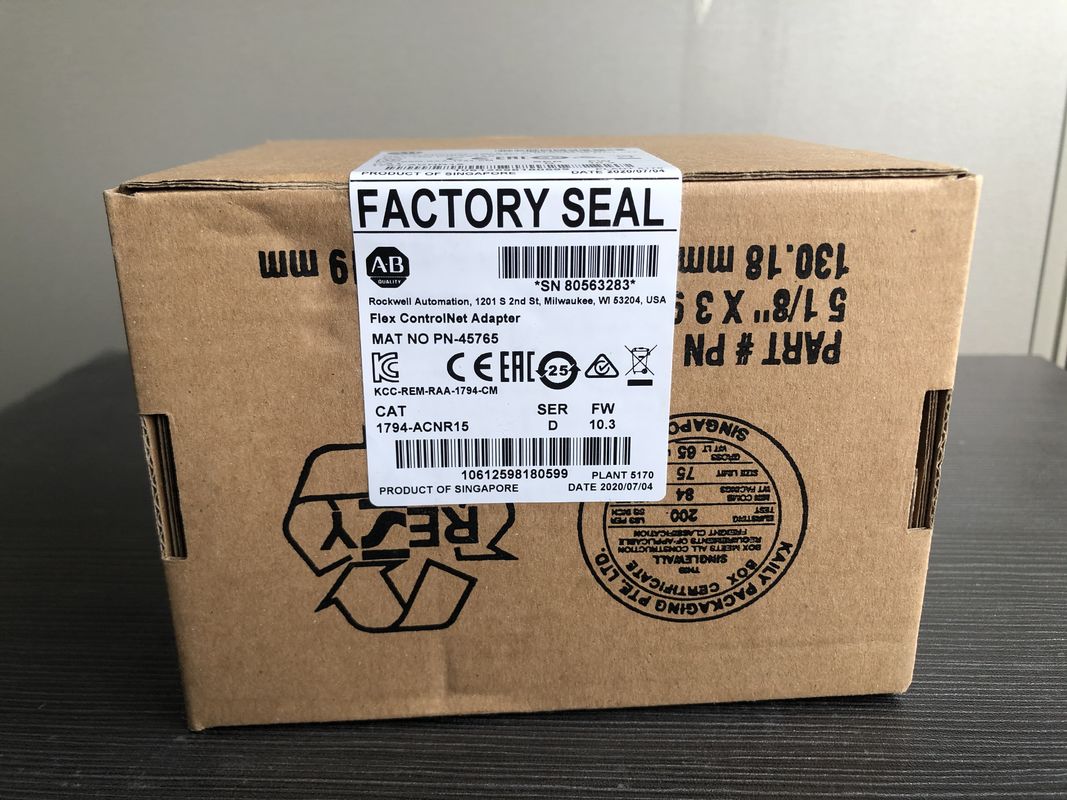

1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
  • 1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
  • 1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
  • 1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module
  • 1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module

1794 ACNR15 FLEX I O Allen Bradley Compactlogix ControlNet Redundant Media Adapter Module

Place of Origin Malaysia
Brand Name ALLEN BRADLEY
Model Number 1794-ACNR15
Product Details
Brand:
Allen-Bradley
Part Number/Catalog No.:
1794-ACNR15
Programming Software::
RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer
Communication Port::
Two (2) ControlNet BNC
Data Transfer Speed::
5 Mbps
Mounting:
DIN Rail
ControlNet Protocol::
V 1.25
ControlNet Cable::
3.31 Mm2 (12 AWG) Stranded Max 1.2 Mm (3/64 In.), Insulation, Max
Maximum Output Current Rating-Module:
5 Amps At 30 Degrees Celsius, 4 Amps At 60 Degrees Celsius
Voltage:
24 V DC
Highlight:

5 Mbps Allen Bradley Compactlogix

,

V 1.25 Allen Bradley Compactlogix

,

Allen Bradley 1794 acnr15

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description

Allen-Bradley 1794-ACNR15 FLEX I/O ControlNet Redundant Media Adapter Module

Manufacturer Rockwell Automation

Power Dissipation 3.4W maximum @ 19.2V dc

Brand Allen-Bradley

Product Description: Redundant ControlNet Adapter Module

Programming software: RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer

Communication Port: Two (2) ControlNet BNC

Data Transfer speed: 5 Mbps

Indicators: Comm A: red/grn Comm B: red/grn I/O status- red/grn

Mounting: DIN Rail

ControlNet Protocol: V 1.25

ControlNet cable: 3.31 mm2 (12 AWG) stranded max 1.2 mm (3/64 in.), insulation, max

Operating Temperature: -20…55 °C -4…131 °F)

Surrounding Temperature: 55 °C (131 °F)

Vibration: IEC 60068-2-6 (Test Fc, Operating) IEC 60068-2-6 (Test Fc, Operating): 5 g @ 10…500 Hz

Thermal Dissipation 15.7 BTU/hr @ 19.2V dc

Part Number/Catalog No. 1794-ACNR15

Product Type Redundant Media ControlNet Adapter

Voltage 24 V DC

Input Voltage Range 19.2-31.2V DC

Flexbus Output Current 640 mA max.

Isolation Voltage 850V DC

Inrush Current 23A for 2ms

Communication Rate 5M bps

Current Draw 450mA max.

UPC 10612598180599
