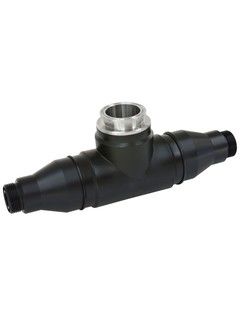

E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121
  • E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121
  • E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121
  • E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121
  • E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121

E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number CUA252-AAB121
Product Details
Measuring Principle:
Single Beam Scattered Light
Material:
PE100
Dimension:
350 X 120 Mm
Process Temperature:
0 To 50°C
Process Pressure:
0 To 6 Bars
Connection:
G 1 1/4 And Vaious Adapters
Highlight:

CUA252-AAB121 Turbidity assembly

,

CUA252 Turbidity assembly

,

E&H Instrument Turbidity assembly

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Product Description

E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121


Process temperature

0 to 50°C

Process pressure

0 to 6 bars

Design

PE100


E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121 0E&H Instrument Turbidity assembly Flowfit CUA252 CUA252-AAB121 1


Specs at a glance

  • Process temperature

    0 to 50°C

  • Process pressure

    0 to 6 bars

Field of application

Flowfit CUA252 is a turbidity flow assembly for all drinking and process water applications. Its extremely low backscattering enables reliable values even in the lowest measuring range – for precise information about your process. The ruggedized PE material withstands high pressure and temperature and is fully suitable for drinking water. Thus, you preserve each drop of water in the process. Its easy to use Clamp connection and automatic venting speed up sensor installation and commissioning.


Flowfit CUA252 is a flow assembly for use with the Turbimax CUS52D sensor in:

  • Drinking and process water:
    - All measuring points from inlet to outlet of water plants
    - Abstraction and raw water control
    - All measuring points in distribution networks
    - All quality control points in water production

  • Wastewater treatment plants:
    - Reuse of outlet water

  • Utilities of all industries:
    - All measuring points from inlet to outlet of water production
    - All measuring points in distribution networks

Benefits

  • Precise information about your process: Extremely low backscattering allows reliable measuring values even at the lowest turbidity.

  • Flexible mounting: Quick screwing into the process pipeline or in a bypass installation with a wide range of pipe connections.

  • Fast sensor installation and commissioning: Easy-to-use clamp connection and automatic venting speed up integration into your process.

  • Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 60°C (140°F).
