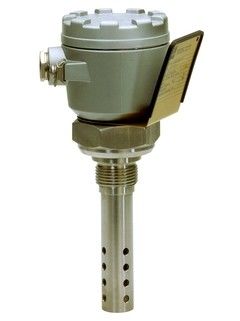

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A
  • Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A
  • Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number CLS12-B1D5A
Product Details
Measurement Range:
K=0.01: 0 To 20 µS/cm
Process Temperature:
-30 To 160 °C (-22 To 320 °F)
Measuring Principle:
Conductive
Electodes:
Stainless Steel 1.4571
Sealing:
PEEK / EPDM
Temperature Sensor:
Integrated Pt100
Highlight:

endress hauser analog conductivity sensor

,

condumax analog conductivity sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description


Analog Conductivity Sensor Condumax CLS12 E&H Instrument CLS12-B1D5A


Ex certification

ATEX

Additional certifications

Calibration certification with cellconstant

Process temperature

-30 to 160 °C (-22 to 320 °F)


Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A 0


Specs at a glance

  • Measurement range

    k=0.01: 0 to 20 µS/cm
    k= 0.1: 0 to 200 µS/cm

  • Process temperature

    -30 to 160 °C (-22 to 320 °F)

  • Process pressure

    Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
    Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

Field of application

Condumax CLS12 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.


Condumax CLS12 measures conductivity in the steam/water cycle in the power & energy industry:

  • Condensate monitoring

  • Boiler feedwater monitoring

  • Boiler blowdown control

The sensor can be used in all low conductivity applications with high temperatures and pressures.

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Reliable and accurate measuring values at low conductivities

  • Optimized for high pressures and temperatures up to 160°C (320°F)

  • Easy cleaning thanks to stainless steel body and removable outer electrode

  • Robust design for high durability

  • Quality certificate stating the individual cell constant


Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A 1

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A 2
