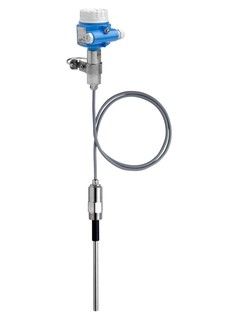

Solicap FTI55 Capacitance Point level detection E&H Instrument FTI55-AAC1RGJ41A1A
  • Solicap FTI55 Capacitance Point level detection E&H Instrument  FTI55-AAC1RGJ41A1A
  • Solicap FTI55 Capacitance Point level detection E&H Instrument  FTI55-AAC1RGJ41A1A
  • Solicap FTI55 Capacitance Point level detection E&H Instrument  FTI55-AAC1RGJ41A1A
  • Solicap FTI55 Capacitance Point level detection E&H Instrument  FTI55-AAC1RGJ41A1A

Solicap FTI55 Capacitance Point level detection E&H Instrument FTI55-AAC1RGJ41A1A

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number FTI55-AAC1RGJ41A1A
Product Details
Process Temperature:
-50°C ... 180°C
Process Pressure / Max. Overpressure Limit:
Vacuum ... 25 Bar
Measuring Principle:
Capacitive Solid
Specialities:
Inactive Length
Supply / Communication:
19 ... 253V AC
Ambient Temperature:
-50°C ... 70°C
Highlight:

25 bar capacitance point level detection

,

solicap capacitance point level detection

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description

Capacitance Point level detection Solicap FTI55 E&H Instrument FTI55-AAC1RGJ41A1A

Main wetted parts

PE, PPS, 316L, Steel

Process connection

Thread R1 1/2, NPT1 1/2

Sensor length

0.2m ... 4m


Specs at a glance

  • Process temperature

    -50°C ... 180°C
    (-58°F ... 356°F)

  • Process pressure / max. overpressure limit

    Vacuum ... 25 bar
    (Vacuum ... 362 psi)

Field of application

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.


For applications with very high lateral loads up to 300Nm. Fieldgate and Solicap represent a solution for material provisioning and logistical optimization (inventory control)

  • Process connections: Flanges and threads

  • Measurement range: 200 to 4,000mm (4 to 157")

  • Temperature: -50 to +180°C (-58 to +356°F)

  • Pressure: -1 to +25bar (-14.5 to +363psi)

  • International explosion protection certificates, SIL

Benefits

  • Highest safety and reliability due to robust design for demanding process conditions

  • Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

  • Universal application thanks to wide range of certificates and approvals

  • Two-stage overvoltage protection against static discharges from the silo

  • Active build-up compensation for bulk solids with caking tendency (under development)

  • Increased safety due to permanent automatic monitoring of electronics

  • Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
