Place of Origin | DE |
Brand Name | Endress Hauser |
Certification | Rohs |
Model Number | DMA50-AAAAA1 |

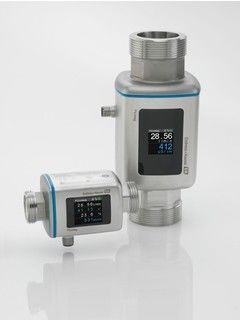

E&H Instrument Picomag electromagnetic flowmeter DMA50-AAAAA1
Measuring principle |
Electromagnetic |
Nominal diameter range |
DN15 to 50 (1/2 to 2") |
Measured variables |
Volume flow, Temperature, Conductivity |
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
up to 750 l/min
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
16 bar
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
Device properties
High shock and vibration resistance
Degree of protection: IP65/67
Empty pipe detection
Wireless remote access via Bluetooth SmartBlue app
IO-Link and various I/Os for all line-sizes
1.4" TFT color display with backlight
Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection
Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement
Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing
Quick offline configuration check – unique, comfortable knock functionality
Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue App
Instant local process monitoring – large, user-friendly display of all measurement activities
Flexible integration into all fieldbus systems – plug-and-play device with IO-Link
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
