Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005
  • Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005
  • Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005

Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number CCM223-EK0005
Product Details
Input:
Chor / Chlordioxide And PH/ORP Sensor.
Output / Communication:
Chlor/Chlordioxid, PH
Temperatur:
0/4-20mA- Profibus
Measuring Principle:
Free Chlorine
Dimension:
96mm X 96mm
Built In Depth:
146mm
Highlight:

E&H Instrument Disinfection transmitter

,

Liquisys Disinfection Transmitter

,

CCM223-EK0005

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T,T/T
Supply Ability
5000pcs/month
Product Description

E&H Instrument Disinfection transmitter Liquisys CCM223-EK0005


Input

Chor / Chlordioxide and pH/ORP Sensor.

Output / communication

Chlor/Chlordioxid, pH
Temperatur 0/4-20mA- Profibus- Hart + 0/4-20mA

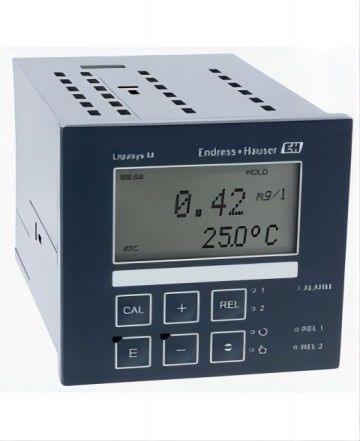

Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005 0

Specs at a glance

  • Input

    Chor / Chlordioxide and pH/ORP Sensor.

  • Output / communication

    - Chlor/Chlordioxid, pH, Temperatur : 0/4-20mA- Profibus- Hart + 0/4-20mA

Field of application

Liquisys CCM223 is a standard chlorine transmitter with integrated pH compensation for free chlorine. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.


The Liquisys CCM223 transmitter works with all analog total chlorine, free chlorine, chlorine dioxide and pH sensors in:

  • Water & Wastewater
    - Disinfection process control and monitoring
    - Desalination with membrane technology
    - Swimming and whirl pools
    - Gas scrubbers

  • Food & Beverages
    - Disinfection of process water

  • Power plants
    - Cooling water disinfection

Liquisys CCM223 features the following protocols and interfaces:

  • 0/4...20mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Benefits

  • More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.

  • Reliable chlorine and pH control: Current input for flow rate monitoring with controller shut off or for feedforward control.

  • Easy to operate and service: Intuitive user interface, simple calibration for chlorine and pH, direct access for manual contact control.

  • Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

  • Fit for every application: Numerous extensions, e.g. P(ID) controller, timer, etc., allow for flexible adaption to all processes.


Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months


Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)



Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.


Q: How long warranty?

A: One-year warranty.


Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.


Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB


Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.


Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.

Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005 1

Rohs E&H Instrument Disinfection Transmitter Liquisys CCM223-EK0005 2
