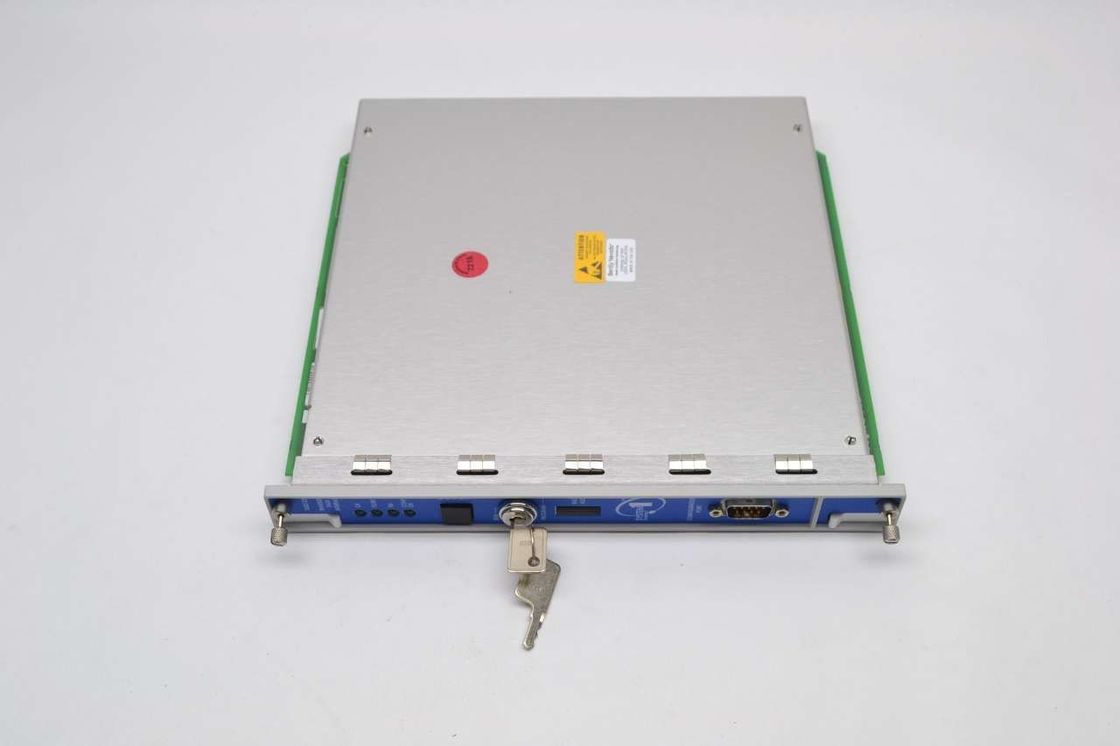

3500/22-01-01-00 GE Bently Nevada 3500/22M Transient Data Interface

Bently Nevada 3500/22-01-01-00 3500/22M Transient Data Interface

The 3500 Transient Data Interface (TDI) is the interface between the 3500

monitoring system and GE’s System 1® machinery management software. The

TDI combines the capability of a 3500/20 Rack Interface Module with the data
collection capability of a communication processor such as TDXnet.
The TDI operates in the RIM slot of a 3500 rack in conjunction with the M series
monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and
transient waveform data and pass this data through an Ethernet link to the host
software. Static data capture is standard with the TDI, however using an
optional Channel Enabling Disk will allow the TDI to capture dynamic or transient
data as well. The TDI features improvements in several areas over previous
communication processors and incorporates the Communication Processor
function within the 3500 rack.

Ordering Information
List of Options and Part Numbers
3500/22M TDI Module and I/O
3500/22-AXX-BXX-CXX
A: Transient Data Interface Type
0 1 Standard (Use for standard
monitoring applications)
0 2 TMR (Use only for applications
that require a Triple Modular
Redundant Configuration).
B: I/O Module Type
0 1 10Base-T/100Base-TX
Ethernet I/O module
0 2 100Base-FX (Fiber Optic)
Ethernet I/O module
C: Agency Approval Option
0 0 None
0 1 CSA/NRTL/C
0 2 CSA/ATEX

Spares
288055-01

Standard Transient Data Interface
Module

288055-02

TMR Transient Data Interface
Module

146031-01

10Base-T/100Base-TX I/O Module

146031-02

100Base-FX (Fiber Optic) I/O
Module

147364-01

3500 Buffered Signal Output
Module

161580-01

3500/22M TDI Operation and
Maintenance Manual

164466-01

Network Accessories Datasheet
