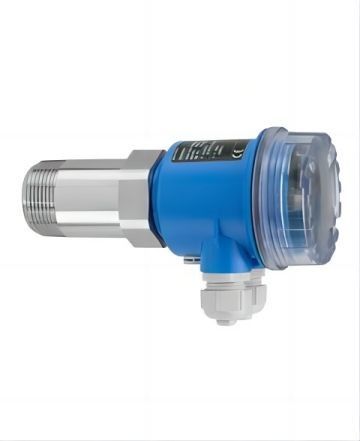

E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
  • E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
  • E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
  • E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21

E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number FDR56-AA1ADDVE21
Product Details
Non-contact Installation:
Any
Within Installation:
-40 °C...+70 °C
With HT-Adapter:
Up To +450 °C (+842 °F)
Min. Density Of Medium:
10 G/l
Measuring Principle:
Microwave Barrier
Ambient Temperature:
-40 °C...+70 °C
Highlight:

Microwave Barrier E&H Instrument

,

Microwave Barrier Transceiver

,

FDR56-AA1ADDVE21

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21


Supply / Communication

85 ... 253 VAC
Measuement range max. 100 m

Measuring principle

Microwave barrier


E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21 0E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21 1

Specs at a glance

  • Process temperature

    Non-contact installation: any
    Within installation:
    -40 °C...+70 °C (-40 °F...+158 °F)
    With HT-Adapter:
    up to +450 °C (+842 °F)

  • Process pressure / max. overpressure limit

    Non-contact installation: any
    Within installation:
    0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
    With HD-Adapter:
    up to +21 bar (+305 psi) abs.

  • Min. density of medium

    Solid weight: > 10 g/l

Field of application

The Soliwave FDR56 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR56 emitter.


Typical bulk solids are: Wood chips, wood dust or flour; plaster, cement, ash; paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

  • Process connections: Threads

  • Ambient temperature: -40 to +70°C (-40 to +158°F)

  • Measuring range: Max. 100m (328ft)

  • International explosion protection certificates

Benefits

  • Highly reliable measurement due to flush-mounted installation and possible non-contact installation as well as indication of the signal strength on the transceiver

  • Mechanical robust solution ensures cost savings over the whole life cycle of the product: No wear and tear, process-wetted ceramic sensor diaphragm (optional), long serviceable life, maintenance free

  • Electronics housing can be rotated by 360°, allowing adjustment into optimum position after installation

  • Direct connection of the supply voltage (emitter and receiver separately or together)

  • Mechanically compatible to FQR50/FDR50 microwave barrier, existing process connections can continue to be used; likewise, accessories such as adapter flanges, installation brackets and sight glasses can continue to be used
