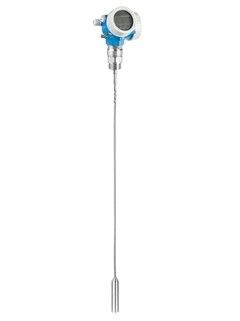

Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
  • Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
  • Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
  • Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA
  • Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA

Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number FMP57-AAACCALCA4AJJ+LA
Product Details
Process Temperature:
-40...+150 °C
Process Pressure / Max. Overpressure Limit:
Vacuum...16 Bar
Ambient Temperature:
-40...+80 °C
Rod Probe:
316Ti, 316L, PEEK, PPS
Highlight:

16 Bar E&H Instrument

,

FMP57 E&H Instrument

,

Guided Radar Measurement

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

Guided radar measurement Time-of-Flight Levelflex FMP57 FMP57-AAACCALCA4AJJ+LA

Ambient temperature

-40...+80 °C

Process temperature

-40...+150 °C

Process pressure / max

Vacuum...16 bar


Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA 0


Guided Radar Measurement E&H Instrument FMP57-AAACCALCA4AJJ+LA 1

Specs at a glance

  • Accuracy

    Rod probe: +/- 2 mm (0.08 in)
    Rope probe <= 15 m (49ft):
    +/- 2 mm (0.08 in)
    Rope probe > 15 m (49ft):
    +/- 10 mm (0,39 in)

  • Process temperature

    -40...+150 °C
    (-40...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...16 bar
    (Vacuum...232 psi)

  • Max. measurement distance

    Rod:
    4 m (13 ft) Min DK>1.4
    Rope:
    20 m...25 m (66 ft...82 ft) Min DK >1.4;
    25 m...30 m (82ft...98 ft) Min DK >1.6;
    30 m...45 m (98ft...148 ft) Min DK>1,9

  • Main wetted parts

    Rod probe:
    316Ti, 316L, PEEK, PPS
    Rope probe:
    304, 316, 316Ti, 316L, PEEK, PPS, PA

Field of application

Levelflex FMP57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. Providing rope probes up to a length of 45m the FMP57 is also suited to measurements in high silos. Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.


Version with rod or rope probe.

  • Process connections: Thread or flange

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +16bar (-14.5 to +232psi)

  • Maximum measuring range: Rod 4m (13ft), rope 45m (148ft)

  • Accuracy: ±2mm (0.08")

  • International explosion protection certificates, SIL, marine approval, 5-point linearity protocol

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test for SIL and WHG saves time and costs
