Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar

Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar

Place of Origin DE
Brand Name Endress Hauser
Certification Rohs
Model Number PMC71-MVE6/0
Product Details
Process Temperature:
-40°C...150°C
Pressure Measuring Range:
100mbar...40bar
Max. Measurement Distance:
400m (1312ft) H2O
Material Process Membrane:
Ceramic
Measuring Cell:
100 Mbar...40 Bar
Vacuum Resistance:
0 Mbar Abs.
Highlight:

PMC71 E&H Instrument

,

Magnetic E&H Instrument

,

Pressure Cerabar Magnetic Flow Meter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

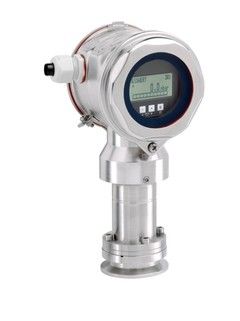

PMC71-MVE6/0 Absolute And Gauge Pressure Cerabar PMC71 E&H Instrument



Max. Turn down

 100:1

Max. overpressure limit

 60 bar (900 psi)

Material process membrane

 Ceramic



Field of application

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.



Two chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections

  • Process temperature: -40 to +150°C (-40 to +302°F)

  • Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)

  • Accuracy: ±0.05%, "Platinum" ±0.025%

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals

Benefits

Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar 0Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar 1

Magnetic PMC71 E&H Instrument Absolute And Gauge Pressure Cerabar 2



  • Best fit for vacuum applications and applications with corrosive and abrasive media

  • Process safety through membrane breakage detection

  • Overload-resistant high purity ceramic sensor (99.9% Al2O3)

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

  • Available with mounted manifolds: always fit, always tested for leaks

Delivery details

SHIPPING:

•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.

•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express.

  •
