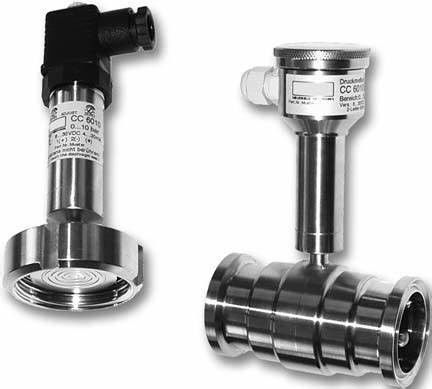

7MF8010-1XD31-1BC1 SITRANS P Transmitter Compact 4-20ma
| Article Number |
7MF8010-1XD31-1BC1 |
| Product Description |
SITRANS P Transmitter Compact for pressure and absolut pressure for food, pharmaceu- ticals and biotechnology, with diaphragm flush at front. 2-wire system, process tempera- ture up to 140 deg. Cel., accuracy 0.2 % of f.s.v. output signal: 4...20 mA, Process connection: Front-flush diaphragm male thread acc. DIN 3852, form A, G 1 1/2 inch, minimum measuring span 0.25 bar Filling liquid: liquid FDA approved Output signal : 4-20 mA Housing(stainless steel1.4404)/ electrical connection: housing with angeld plug according DIN 43650, IP65 Measuring range: 0...250 mbar overload pressure: 1 bar Without explosion protection |
| Product family |
SITRANS P Compact |
| Product Lifecycle (PLM) |
PM300:Active Product |
| Price Group |
8P4 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Material |
see also metal factor (further details are available on the help page) |
| Metal Factor |
see also metal factor (further details are available on the help page) |
| Export Control Regulations |
ECCN : N / AL : N |
| Estimated dispatch time (Working Days) |
17 Day(s) |
| Net Weight (kg) |
0,200 Kg |
| Package size unit of measure |
Not available |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| EAN |
Not available |
| UPC |
Not available |
| Commodity Code |
90262020 |
| LKZ_FDB/ CatalogID |
FI01-1 |
| Product Group |
4778 |
| Group Code |
R3P0 |
| Country of origin |
Germany |
| Compliance with the substance restrictions according to RoHS directive |
not available |
| Product class |
C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation |
Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
| SCIP number |
Not available |
Packing and Shipping:
Product Packaging:
- The SIEMENS Pressure Transmitter will be securely packaged in a corrugated cardboard box.
- The box will be sealed with tamper-evident tape to ensure the safety and integrity of the product during shipping.
- Inside the box, the product will be cushioned with foam inserts to prevent any damage during transit.
- The product will also come with a user manual and any necessary installation hardware.
Shipping:
- The SIEMENS Pressure Transmitter will be shipped via a reputable carrier such as UPS or FedEx.
- Customers can choose from various shipping options, including standard, expedited, and overnight delivery.
- Shipping costs will be calculated based on the customer's location and desired shipping method.
- Once the product is shipped, customers will receive a tracking number to monitor the delivery status of their package.
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
