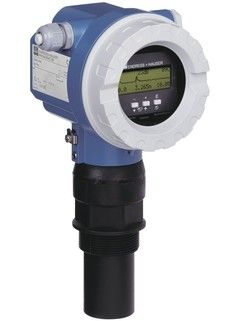

E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2

E&H Ultrasonic measurement Time-of-Flight Prosonic FMU41-ARB2A2

Decription:

Manufacturer : Endress+Hauser

Product name : Ultrasonic measurement Time-of-Flight Prosonic FMU41

Product no : FMU41-ARB2A2

A-Approval : Non-hazardous area

R-Process Connection : Thread ISO228 G2, PVDF

B-Power Supply; Output : 2-wire; 4-20mA HART

2-Operation : 4-line display VU331, envelope curve display on site

A-Housing : F12 Alu, coated, IP68 NEMA6P

2-Cable Entry : Gland M20 (EEx d > thread M20)

Weight kg (lbs) : approx. 2.6 (5.73))

Shipping Weight : 3.6 Kg

Additional Informaiton

The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Accuracy
+/- 2 mm or +/- 0,2 % of set measuring range

Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)

Process pressure absolute / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 44 psi)

Max. measurement distance
Max. measurement distance

Main wetted parts
PVDF
