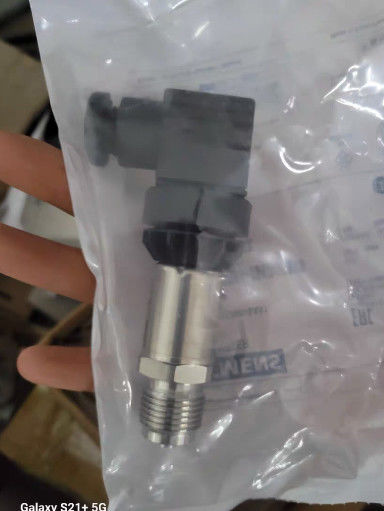

7MF1567-3BE00-1AA1 SITRANS P220 Transmitters for pressure 0-4bar
| Article Number (Market Facing Number) |
7MF1567-3BE00-1AA1 |
| Product Description |
SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications Non-linearity: 0,25 Percent (typically) wetted parts material: stainless steel; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 4 bar, Overload- pressure 10 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Standard version Standard version |
| Product family |
SITRANS P220 |
| Product Lifecycle (PLM) |
PM300:Active Product |
| Region Specific PriceGroup / Headquarter Price Group |
8P4 / 8P4 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Materials |
None |
| Metal Factor |
None |
| Export Control Regulations |
ECCN : N / AL : N |
| Estimated dispatch time (Working Days) |
1 Day/Days |
| Net Weight (kg) |
0,200 Kg |
| Packaging Dimension |
88,00 x 157,00 x 41,00 |
| Package size unit of measure |
MM |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| EAN |
4047623602774 |
| UPC |
Not available |
| Commodity Code |
90262020 |
| LKZ_FDB/ CatalogID |
FI01-1 |
| Product Group |
4778 |
| Group Code |
R3P0 |
| Country of origin |
Switzerland |
| Compliance with the substance restrictions according to RoHS directive |
Since: 20.07.2017 |
| Product class |
A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation |
Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
| SCIP number |
Not available |
