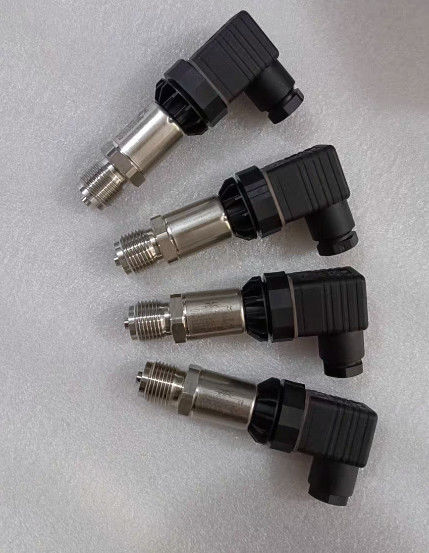

7MF1567-3CD00-6AA3 SITRANS P220 Transmitters for pressure
| Article Number (Market Facing Number) |
7MF1567-3CD00-6AA3 |
| Product Description |
SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications Non-linearity: 0,25 Percent (typically) wetted parts material: stainless steel; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 25 bar, Overload- pressure 62,5 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland PG11 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Standard version Special version "Made for Alfa Laval Aalborg A/S, Denmark". and Aalborg - Logo included |
| Product family |
SITRANS P220 |
| Product Lifecycle (PLM) |
PM300:Active Product |
| Region Specific PriceGroup / Headquarter Price Group |
8P4 / 8P4 |
| List Price |
Show prices |
| Customer Price |
Show prices |
| Surcharge for Raw Materials |
None |
| Metal Factor |
None |
| Export Control Regulations |
ECCN : N / AL : N |
| Estimated dispatch time (Working Days) |
25 Day/Days |
| Net Weight (kg) |
0,200 Kg |
| Package size unit of measure |
Not available |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Minimum order quantity |
25 |
| EAN |
Not available |
| UPC |
Not available |
| Commodity Code |
90262020 |
| LKZ_FDB/ CatalogID |
FI01-1 |
| Product Group |
4778 |
| Group Code |
R3P0 |
| Country of origin |
Switzerland |
| Compliance with the substance restrictions according to RoHS directive |
Since: 20.07.2017 |
| Product class |
C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation |
Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
| SCIP number |
Not available |
Packing and Shipping:
Product Packaging:
- The SIEMENS Pressure Transmitter will be securely packaged in a corrugated cardboard box.
- The box will be sealed with tamper-evident tape to ensure the safety and integrity of the product during shipping.
- Inside the box, the product will be cushioned with foam inserts to prevent any damage during transit.
- The product will also come with a user manual and any necessary installation hardware.
Shipping:
- The SIEMENS Pressure Transmitter will be shipped via a reputable carrier such as UPS or FedEx.
- Customers can choose from various shipping options, including standard, expedited, and overnight delivery.
- Shipping costs will be calculated based on the customer's location and desired shipping method.
- Once the product is shipped, customers will receive a tracking number to monitor the delivery status of their package.
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
