Siemens 7MF1566-3AB00-1AA1 Pressure Transmitter with RO / 1CB Group and CSA Certifications

7MF1566-3AB00-1AA1 Siemens Pressure Transmitter

The P210 series pressure transmitters are used to measure the pressure of gases, liquids and vapors.
? Stainless steel measuring cell
? Measuring range 100 to 600 mbar
? Suitable for low pressure applications

7MF1566-3AB00-1AA1 Siemens Pressure Transmitter Benefits

High measuring accuracy
Robust stainless steel housing
High overpressure load resistance
For measuring corrosive and non-corrosive media
For pressure measurement of gases, liquids and vapors
Compact design
Applications
The pressure transmitters of the P210 series for measuring pressure are used in the following industrial sectors:
Mechanical engineering
Shipbuilding
Power engineering
Chemical industry
Water supply

Design

Non-explosion-proof design
The pressure transmitter consists of a silicon pressure measuring element with diaphragm in a stainless steel housing.

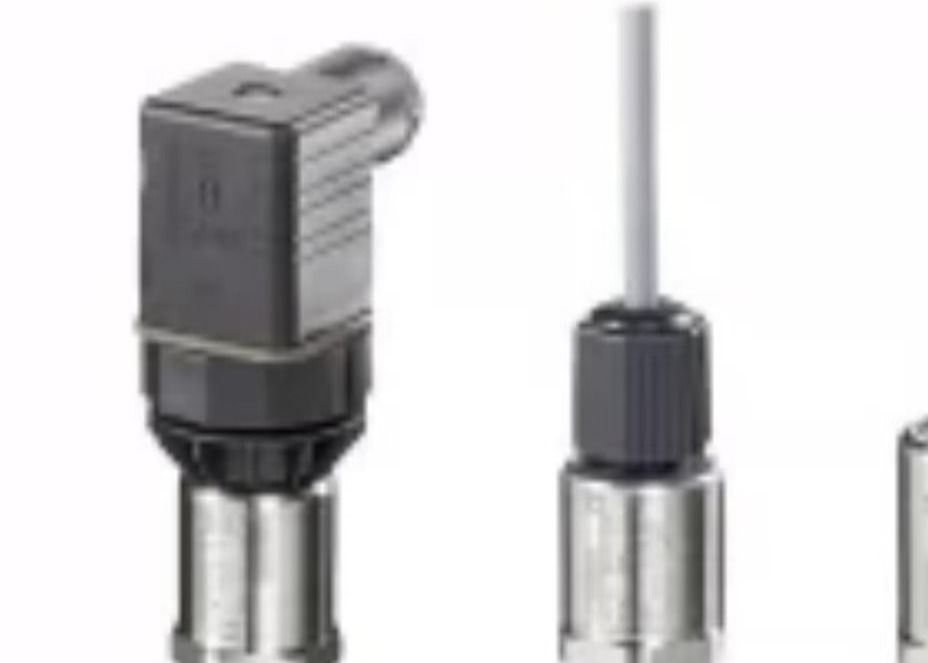

Pressure transmitter Electrical connections according to EN 175301-803-A (IP65), round plug connector M12 (IP67), cable connection (IP67) are available.
Electrical connections according to EN 175301-803-A (IP65), round plug connector M12 (IP67), cable connection (IP67) or quick-threaded cable connection (IP67) can be used.
Output signals are 4...20 mA or 0...10 V.
Explosion-proof design
The pressure transmitter consists of a silicon pressure measuring element with diaphragm in a stainless steel housing.
The pressure transmitter can be operated in accordance with EN 175301-000. Electrical connections according to EN 175301-803-A (IP65) or round plug connector M12 (IP67) can be used.
Electrical connections are available. The output signal is 4...20 mA.

Functions
Pressure transmitters for measuring the pressure and level of gases, liquids and vapors.

Operating mode

SITRANS P210 Pressure Transmitter (7MF1566-...) Function
The stainless steel measuring element has a thin-film resistor bridge, and the operating pressure is transmitted via a stainless steel diaphragm
The working pressure is transmitted via the stainless steel diaphragm.
The output voltage of the measuring element is converted by the preamplifier into an output current of 4...20 mA or an output voltage of 0...10 V.
The output voltage is converted by the preamplifier into an output current of 4...20 mA or an output voltage of 0...10 V DC.
The linearity of the output current is proportional to the input pressure.
Selection and ordering data ----7ML1566
SITRANS P210 Series Pressure Transmitters for Low Pressure Measurement
Accuracy 0.25 % (typical)
Material of connected parts: stainless steel + sealing material
Material of non-fluidized parts: stainless steel
