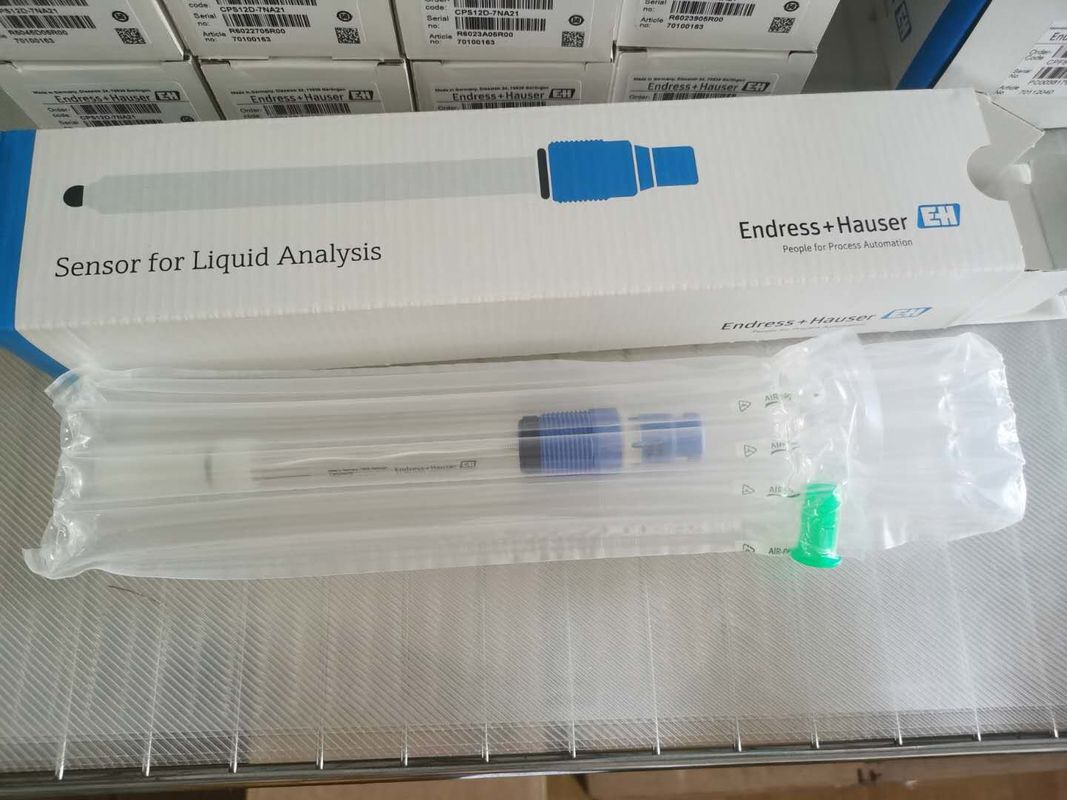

Digital PH Sensor Orbisint CPS11D-7BA2G Memosens Glass Electrode
Description:
Manufacturer : Endress+Hauser
Product No. :CPS11D-7BA2G
Measuring principle:Glass electrode
Characteristic
-Analog, digital pH electrodes for standard applications in process and environmental technology
-Dirt-repellent PTFE diaphragm, built-in temperature sensor
Measurement range:pH 0 to 14
Measuring principle:Gel compact electrode with PTFE ring-diaphragm
Dimension
Diameter: 12 mm (0.47 inch)
Shaft length: 120, 225 and 360 mm
(4.72, 8.86 and 14.17 inch)
Process temperature:0 to 135 °C (32 to 275 °F)
Process pressure:1 to 17 bar (15 to 246 psi)
Temperature sensor:NTC 30k
Additional Informaiton:
Memosens glass electrode for standard applications
Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS11D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.
Specs at a glance
Measurement range
pH 0 to 14
Process temperature
0 to 135 °C (32 to 275 °F)
Process pressure
1 to 17 bar (15 to 246 psi)
