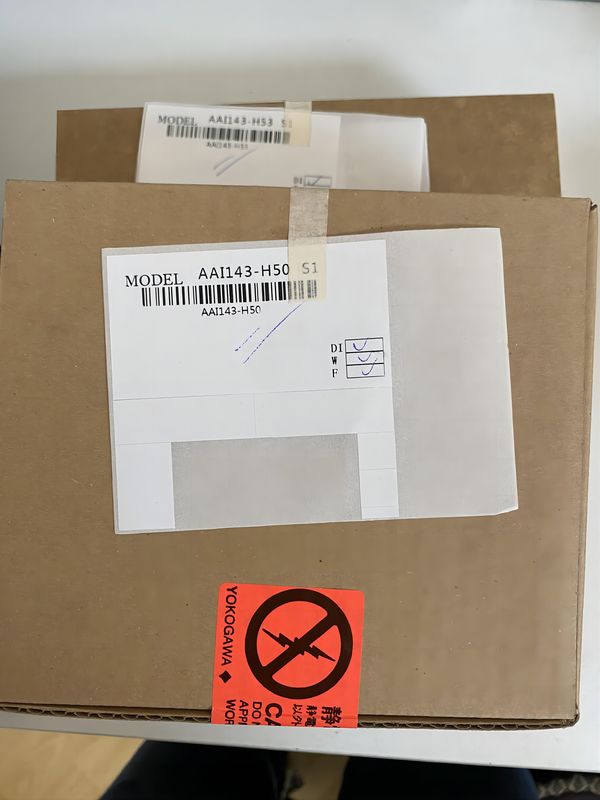

Yokogawa Modbus Analog Digital Input Output Module AAI143-H53/K4A00

AAI143-H53/K4A00 | Yokogawa | Analog Input Module

• Manufacturer :Yokogawa

• Product No. : AAI143-H53/K4A00

• Product Type : Analog Input Module

• H : With digital communication (HART protocol)

• 5 : With no explosion protection

• 3 : With ISA Standard G3 option and temperature (-20 to 70 °C) option

• K4A00 : With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]

• Number of input channels : 16, isolated

• Input signal : 4 to 20 mA

• Allowable input current : 24 mA

• Withstanding voltage : Between input and system: 1500 V AC, for 1 minute

• Input resistance

  • Power ON : 270 ? (20 mA) to 350 ? (4 mA)

  • Power OFF : 500 k? or larger

• Accuracy : ±16 µA

• Data update period : 10 ms

• Transmitter power supply : 19.0 V or higher (at 20 mA) 25.5 V or less (at 0 mA) (output current limit: 25 mA)

• Setting of 2-wire or 4-wire transmitter : For each channel by setting pin

• Drift due to ambient temperature change : ±16 µA/10 °C

• Maximum current consumption : 230 mA (5 V DC), 540 mA (24 V DC)

• External communication : Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)

• Weight : 0.3 Kg

• Shipping Weight : 1.5 Kg

Important terms:

1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Yokogawa & Singapore

4. Delivery lead time: In stock

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
