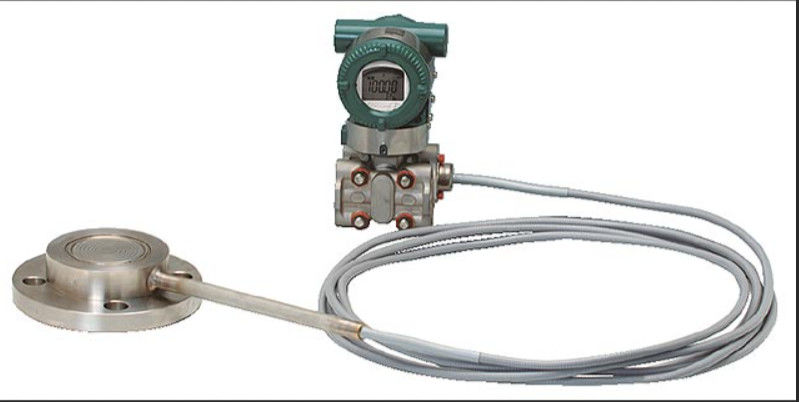

EJA438E-JASCG-917DJ Gauge Pressure Transmitter with Remote Diaphragm Seal

EJA438E-JASCG-917DJ Gauge Pressure Transmitter with Remote Diaphragm Seal

Description:

Manufacturer : Yokogawa

Product No. : EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53

Product type : EJA438E Diaphragm sealed gauge pressure transmitter

EJA438E : Diaphragm sealed gauge pressure transmitter

J - Output signal : 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

A - Measurement span (capsule) : 0.06 to 3.5 MPa (8.6 to 500 psi)

S : Always S

C : Always C

G - Coverflange bolts and nuts material : 316L SST

9 - Installation : Horizontal piping type and left side high pressure

1 - Amplifier housing : Cast aluminum alloy

W - Process connection style : Flush type

SW - Wetted parts material : 316L SST(Diaphragm) 316L SST (others)

0 - Flushing connection ring : None

0 - extension : none

Weight : 9.8 Kg

Shipping weight : 12 Kg

EJA438E Standard features include:

± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
