Custom Yokogawa EJA Pressure Transmitter Gauge EJA438E-FBSCG-919DB

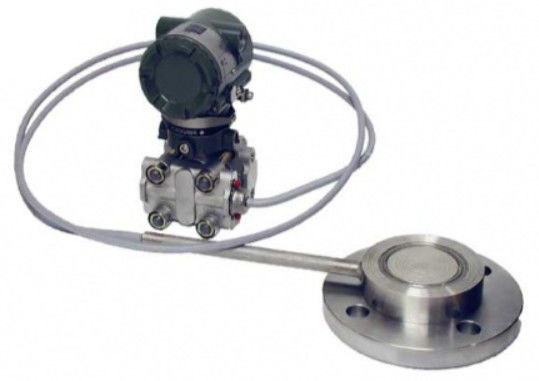

EJA438E-FBSCG-919DB Gauge Pressure Transmitter with Remote Diaphragm Seal

Description:

Manufacturer : Yokogawa

Product No. : EJA438E-FBSCG-919DB-WA12C1SW00-1A2A/X2/D3/M2W/T52

Product type : EJA438E Diaphragm sealed gauge pressure transmitter

EJA438E : Diaphragm sealed gauge pressure transmitter

S : Always S

C : Always C

G - Coverflange bolts and nuts material : 316L SST

9 - Installation : Horizontal piping type and left side high pressure

1 - Amplifier housing : Cast aluminum alloy

W - Process connection style : Flush type

A1 - Flange rating : ANSI class 150

2 - Process connection size (Process flange size) : 2-inch(50mm)

B - Flange material : 304 SST

2 - Gasket Contact surface : Flat (no serration)

SW - Wetted parts material : 316L SST(Diaphragm) 316L SST (others)

0 - Flushing connection ring : None

0 - extension : none

A - Fill Fluid : For general use (silicone oil)

process temperature : –10 to 250°C

Ambient temperature : –10 to 60°C

A - Capillary connection : Side of diaphragm seal unit

EJA438E Standard features include:

± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter
