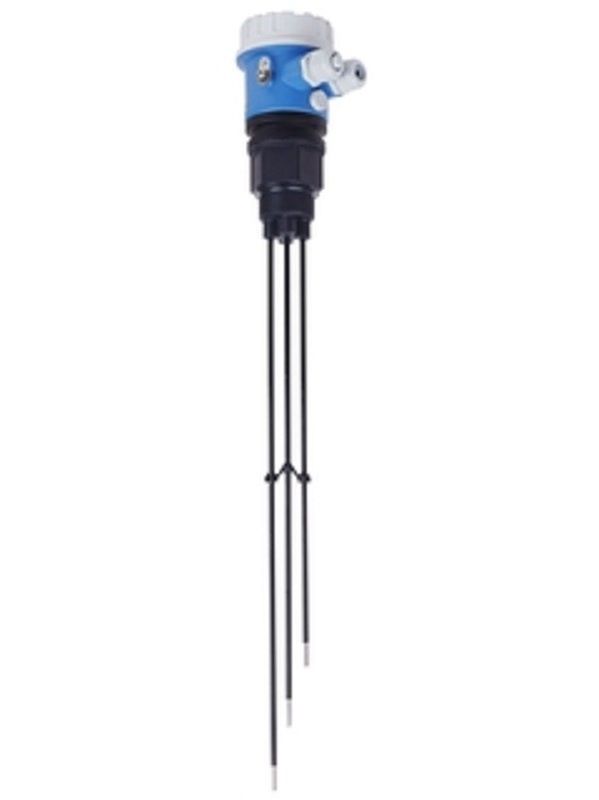

Conductive Point Level Detection Liquipoint FTW31 FTW31-A2A5AA0A

FTW31-A2A5AA0A Conductive Point Level Detection Liquipoint FTW31

Approval:  A  Non-hazardous area
Process Connectio:  2  Thread ANSI NPT1-1/2, PPS
Sensing Point:  A5  5x rod, 316L
Probe Length:  A  600 mm ..... mm L, 316L
Cable Entry:  A  Gland M20
Electronics; Output:  0  Separate instrumentation
Additional Option:  A  Basic version

Specs at a glance
Process temperature
-40 °C ... 100 °C
(-40 °F ... 212 °F)
Process pressure / max. overpressure limit
Vacuum ... 10 bar
(Vacuum ... 145 psi)
Min. conductivity of medium
10 µS/cm

Field of application
The Liquipoint FTW31 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods).
For use in conductive liquids (as of 10μS/cm). For overfill prevention, dry running protection,
two-point control of pumps or multiple point detection.

• Process connections: Threads
• Sensor length: 0.1 to 4m (3.9 to 157")
• Temperature: -40 to 100°C (-40 to 212°F)
• Pressure: -1 to 10bar (-14.5 to 145psi)
• International explosion protection certificates, overfill prevention and leakage detection certificate WHG

Benefits

• Cost-effective probe for conductive liquids with detection of up to five point levels with one probe
• No calibration required
• Standard setting for the most common conductive liquids
• No moving parts in the tank - long service life, reliable operation with no wear or blockages
