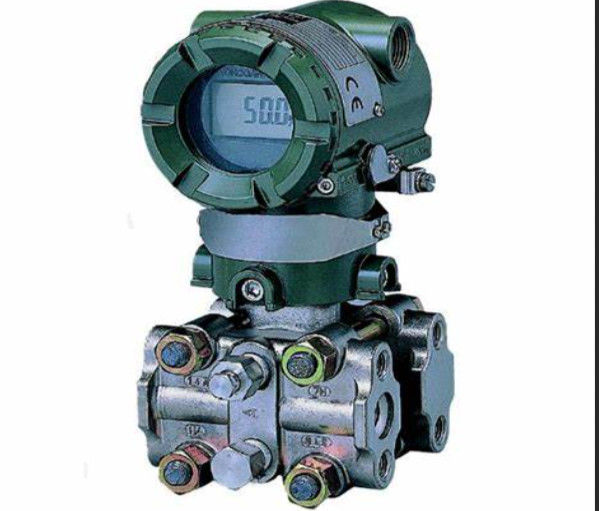

Hastelloy LPS Differential Draft Range Pressure Transmitter EJA120E-JES4G-912DB

EJA120E-JES4G-912DB EJA120E Draft Range Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa

Product No. : EJA120E-JES4G-912DB

Product Type : Differential Pressure Transmitter

Output Signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

Measurement span (capsule) : E = 0.1 to 1 kPa (0.4 to 4 inH2O)

Wetted parts material : S

Cover flange and process connector : ASTM CF-8M

Capsule : Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others)

Capsule gasket : PTFE Teflon

Vent/Drain plug : 316 SST

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts material : G = 316L SST

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs

Integral indicator : D = Digital indicator

Weight : 3.7 Kg

Shipping Weight : 8 Kg

Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.

EJA120E features include:

• ± 0.2% Accuracy (0.09% available with /HAC option)
• ± 0.3% per 1 year Stability
• 150 ms Response Time
• Exida and TUV SIL 2/3 Certified
• Local Parameter Setting (LPS)
• True Draft Range design

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months
