Inline Absolute Yokogawa EJA Pressure Transmitter EJA510E-JCS4N-019DL/KU22

EJA510E-JCS4N-019DL/KU22 EJA510E In-Line Mount Absolute Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : Manufacturer : Yokogawa
Product No. : EJA530E-JCS4N-012EL/KU22/D3/M15
Product type : EJA530E Gauge Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : C = 0.5 to 10 MPa (72.5 to 1450 psi)
Wetted parts material : S = Process connector 316L SST #, Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : E = Digital indicator with the range setting switch (push button)
Mounting bracket : L = 316 SST 2-inch pipe mounting
ATEX : KU22 = Combined KF22, KS21 and ATEX Intrinsically safe Ex ic
Calibration units : D3 = bar calibration (bar unit)
Material certificate : M15 = Process Connector
Shipping weight : 3Kg

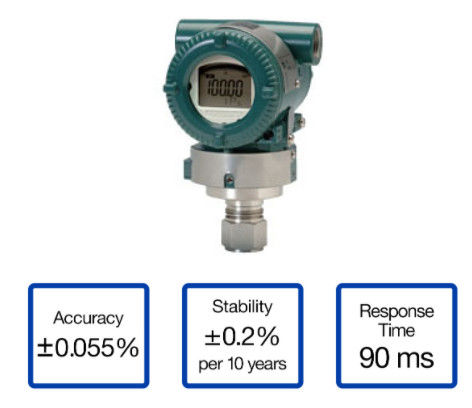

The EJA510E is our in-line mount absolute pressure transmitter in the series.

EJA510E features include:

• ± 0.055% Accuracy (0.04% Accuracy optional)
• ± 0.2% Stability per 10 years
• 90 ms Response Time
• Exida and TUV SIL 2/3 Certified
• 8,700 psia Maximum Over Pressure
• Local Parameter Setting (LPS)

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter
