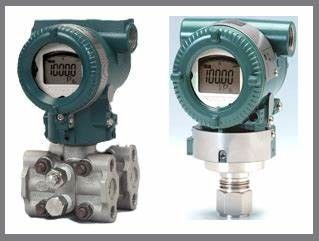

EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
Description:
Manufacturer : Yokogawa
Product No. : EJA430E-DBS4G-717DD/D3
Product Type : Gauge Pressure Transmitter
Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule) : B = 0.14 to 16 MPa (20 to 2300 psi)
Wetted parts material : S
Cover flange and process connector : ASTM CF-8M
Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket : Teflon-coated 316L SST
Vent/Drain plug : 316 SST
Process connections : 4 = with 1/2 NPT female process connector
Bolts and nuts material : G = 316L SST
Installation : 7 = Vertical piping, left side high pressure, and process connection down side
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug
Integral indicator : D = Digital indicator
Mounting bracket : D = 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)
Calibration units : D3 = Bar calibration (bar unit)
Weight : 2.8 Kg
Shipping Weight : 8 Kg
EJA430E features include:
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
| |
Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E |
| L Capsule |
M Capsule |
H Capsule |
V Capsule |
| Range |
-10 to 10 kPa |
-100 to 100 kPa |
-500 to 500 kPa |
-0.5 to 14 MPa |
| (-40 to 40 inH2O) |
(-400 to 400 inH2O) |
(-2000 to 2000 inH2O) |
(-70 to 2000 psi) |
| Span |
0.5 to 10 kPa |
1 to 100 kPa |
5 to 500 kPa |
0.14 to 14 MPa |
| (2 to 40 inH2O) |
(4 to 400 inH2O) |
(20 to 2000 inH2O) |
(20 to 2000 psi) |
| Accuracy |
±0.075% |
±0.065% |
± 0.065% |
±0.065% |
| Degrees of Protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
| Certificates |
FM, CENELEC ATEX, CSA, IECEx |
| Output |
4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication |
| Supply Voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) |
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
| Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type) |
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
| Process Temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
| Maximum Working Pressure |
16MPa(2300psi) |
| 3.5MPa(500psi) for L capsule with special materials |
| Mounting |
2-inch pipe mounting |
| Wetted parts material |
Capsule |
SUS316L(Diaphragm material is Hastelloy C-276), |
| Hastelloy C-276, Tantalum, Monel |
| Cover flange |
SUS316, Hastelloy C-276, Monel |
| Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
Common Models:
| EJA430E-DAS4G-717DD |
| EJA430E-DAS4J-717DD |
| EJA430E-JAS5G-93DEB |
| EJA430E-JBS4C-93DEB |
| EJA430E-FAS5G-919DB |
| EJA430E-DBS4J-917DB/KF22 |
| EJA430E-DAS4J-710DD/D3/C1 |
| EJA430E-JAS4G-917DB/X2/A/D3/M11 |
| EJA430E-JAS4G-722ND/KU22/A/D4 |
| EJA430E-JAS4G-93CED/KU22/HAC/A |
| EJA430E-JBS5G-93CED/KU22/HAC/A |
| EJA430E-JBS4G-93CED/KU22/HAC/A |
| EJA430E-JBS5C-91DDB/KU22/X2/T12 |
| EJA430E-JAS5J-919DN/KS21/D3/M01/T01/X2 |
| EJA430E-JAS5G-919DB/KU22/X2/D3/M01/T01 |
| EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12 |
| EJA430E-JAS5G-92DDJ/KS21/A/D3/M01/T01 |
| EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11 |
| EJA430E-FHS4G-919DB/KS26/D3/X2/M11/T11 |
| EJA430E-JHS4G-919DD/KU22/D3/X2/M11/T11 |
| EJA430E-JHS4G-919EB/KU22/D3/X2/M11/T11 |
| EJA430E-JBS5G-919DB/KU22/D3/X2/M01/T12 |
| EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12 |
| EJA430E-JAS5J-719DD/X2/D3/M01/T01/KU22 |
| EJA430E-JBS5J-719DD/X2/D3/M01/T12/KU22 |
| EJA430E-FAS5G-919DJ/KS26/M01/T01/D3 |
| EJA430E-FAS5G-719DD/KS26/M01/T01/D3 |
| EJA430E-FAS5G-319DD/KS26/M01/T01/D3 |
