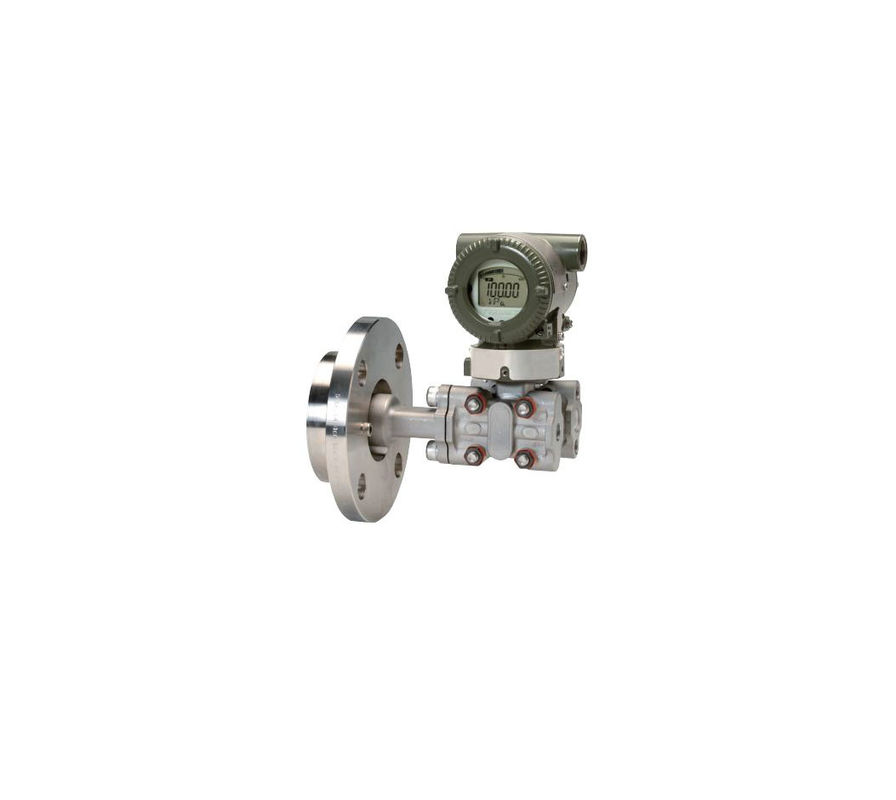

80mm Yokogawa EJA Pressure Transmitter , Flange differential level transmitter
  • 80mm Yokogawa EJA Pressure Transmitter , Flange differential level transmitter
  • 80mm Yokogawa EJA Pressure Transmitter , Flange differential level transmitter

80mm Yokogawa EJA Pressure Transmitter , Flange differential level transmitter

Place of Origin JAPAN
Brand Name YOKOGAWA
Certification ROHS
Model Number EJA210E-JMS4G-919DN-WD23C2SW00-B/D4
Product Details
Output Signal:
Modbus,4~20mA
Weight:
8.3kg
Shipping Weight:
11kg
Measurement Span (capsule):
1 To 100kPa (4 To 400 InH2O)
Installation:
Flange Mounted
Manufacturer:
Yokogawa
Origin:
Japan
Warranty:
12 Months
Highlight:

20mA Yokogawa EJA Pressure Transmitter

,

80mm Yokogawa EJA Pressure Transmitter

,

Flange differential level transmitter

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description


EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter




Description:

Manufacturer : Yokogawa
Product No. : EJA210E-JMS4G-919DN-WD23C2SW00-B/D4

Product type : EJA210E Flange Mounted Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : M = 1 to 100kPa (4 to 400 inH2O)
Low pressure side wetted parts material : S = Cover flange and process connector ASTM CF-8M,Capsule Hastelloy C-276 (Diaphragm),F316L SST, 316L SST (Others),Capsule gasket Teflon-coated 316L SST,Drain/Vent plug 316 SST
Process connections : 4 = with 1/2 NPT female process connector
Coverflange bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 9 = M20 female, two electrical connections with a blind plug
Integral indicator : D = Digital indicator
N = Always N
Process connection style : W = Flush type
Flange rating : D2 = DIN PN10/16
Flange size : 3 = 3-inch (80mm)
Flange material : C = 316 SST
Gasket contact surface : 2 = Flat (no serration)
Wetted parts material (high pressure side) : SW = 316L SST# Diaphragm, 316 SST# Others
Flushing connection ring : 0 = None
Extension : 0 = None
Fill fluid : B = For general use (Silicone oil) , –40 to 120°C Process temperature, –40 to 85°C Ambient temperature.
Calibration units : D4 = M calibration (kgf/cm2 unit)
Weight : 9 Kg
Shipping weight : 11 Kg





Product advantages:

1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.


2.EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential
pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN or HART communications.


3. Other key features include quick response, remote set-up using communications
and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low
Power) protocol types are also available.


4.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.





Product applications:


EJA210E-JMS4J-912DN-EJ14A2SE01-B
EJA210E-JMS5J-912NN-WA13A1SW00-B/D4
EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4
EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
EJA210E-JMS3J-919EN-WA12B2WW00-B/D4
EJA210E-JHS4J-917DN-EA14B1SE03-B/D3
EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4
EJA210E-JMS4J-912DN-WA12A2WW00-B/D4
EJA210E-JMS5G-917EN-WD22C2WW00-B
EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52
EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56
EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56
EJA210E-JMS4G-92DDN-WA23C2HW00-B/KS21/A/D4/M1W/T56




Important terms:

1. Quote Validity 30 days
2. Offered product genuine and brand new.
3. Manufacturer name & country of origin: Yokogawa & Japan
4. Delivery lead time: 8-10 weeks
5. Shipping cost to us: We quote when goods ready for shipment
6. Shipping mode (Air/Sea): Air

Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)


Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.

Q: How long warranty?
A: One-year warranty.

Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.

Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB

Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.

Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
