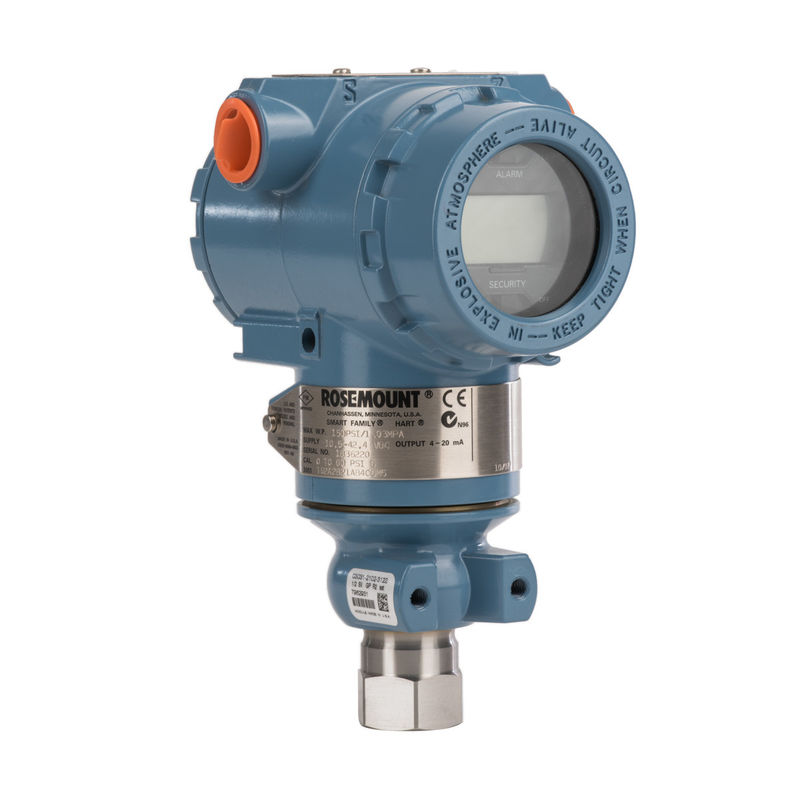

In Line Emerson Rosemount Pressure Transmitter 33051TG3A2B21AB4M5

Emerson Rosemount 33051TG3A2B21AB4M5 In-Line Pressure Transmitters

Description:

Manufacturer : Rosemount
Product No. : 3051TG3A2B21AB4M5
Product type : 3051T In-line Pressure Transmitter
Pressure type : G = Gage
Pressure range : 3 = –14.7 to 800 psi (–1,01 to 55,15 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
Isolating diaphragm,Process connection wetted parts material : 2 = 316L SST,316L SST
Sensor fill fluid : 1 = Silicone
Housing material,Conduit entry size : A = Aluminum, ½–14 NPT
Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST
Weight : 1.9 Kg
Shipping weight : 8 Kg

Additional Informaiton:

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Features & Benefits

HART compatible for easy configuration and calibrationComes standard with 316 stainless steel wetted materials for durability in most process applications
Local display option for easy field measurements

Specifications of Rosemount 3051TG Pressure Transmitter

Output: 4-20 mA with digital signal based on HART Protocol;

Low Power, 1-5 V dc with digital signal based on HART Protocol;

Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range: 0-0.3 to 0-10,000 psi

Accuracy: 1-5: +/-0.075% of span

Power: 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

Materials: Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel

Fluid: Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting: Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST

Important terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 3kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months

Common models:

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.

Q: How long warranty?

A: One-year warranty.

Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.

Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB

Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.

Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
