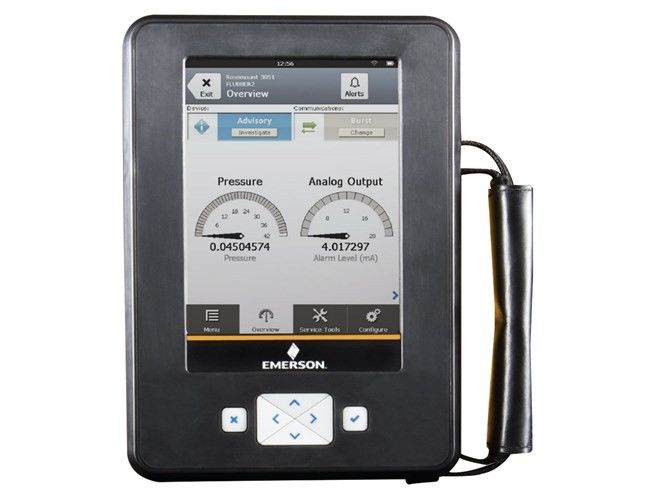

Emerson Rosemount AMS Trex Device Communicator TREXCHPNAWS1S
Description:
Manufacturer : Emerson
Product No. : TREXCHPNAWS1S
Product type : AMS Trex Device Communicator
TREX : Base Trex Platform
Communication Module : C = Device Communicator communication module
Applications : H = HART Application
Power Module Type : P = Rechargeable Li-Ion Power Module
Product certifications : NA = No Approval
Radio options : W = Wireless
Support : S1 = Standard Support (1 Year)
Carrying Case : S = Carrying Case
Microprocessor : 800 MHz ARM Cortex A8/NXP
Memory internal flash : 2GB NAND and 32 GB extended flash
Operating system : Windows Embedded Compact 2013
RAM = 512 MB DDR3 SDRAM
Display : 640 x 480 pixel
Shipping Weight : 3 Kg
Features:
• Commission and validate devices faster
• Automatically synchronize field changes with AMS Device Manager
• Quickly fix issues in the field with advanced device diagnostics
• Configure and test valves inline
• Improve efficiency with a modern, intuitive user interface
• Intrinsically safe; usable anywhere you need to go
There can be little doubt that Emerson AMS Trex Device Communicator expands the long line of Emerson field communicator while adding new capabilities to achieve consumer’s expectation.
More information about Emerson AMS TREX:
1. What is the default level of support for Trex units?
A support option must be included with every unit sale. Standard Support is the default option, which provides a limited warranty to cover the Trex unit against defects in materials and workmanship under normal use and care. Support also includes access to the Global Service Center (GSC) phone support, firmware updates and automated Device Driver (DD) updates.
2. Does the customer have the option to sign up for multi-year Standard Support?
Customers have the option to buy three-year standard support, which will provide customers access to GSC phone support, firmware updates and automated DD updates. Note that addition standard support does not extend hardware warranty.
3. How can the Trex unit be protected against accidental damage?
Customers may purchase either one-year or three-year Premium Support that will include accidental damage support.
4. What is the coverage of the accidental damage?
The following items are covered:
Spare Parts Codes
TREX-0002-1211 Rechargeable Li-Ion Power Module
TREX-0002-3611 Rechargeable Li-Ion Power Module (with 3 years premium coverage)
TREX-0003-0011 AC Adapter (includes US, EU, UK, AU outlet plugs)
TREX-0003-0022 DC Adapter (12v vehicle accessory outlet)
TREX-0003-0002 AC Outlet Plugs (replacement set includes US, EU, UK, AU)
TREX-FFPA-0001 Foundation Fieldbus Power Plug
TREX-0004-0001 Lead Set with connectors
TREX-0005-0002 Hand Strap (replacement set of 2)
TREX-0005-0011 Carrying Case (includes hand & shoulder straps)
TREX-0005-0009 Shoulder Strap (replacement for use with carrying case)
TREX-0005-0004 Magnetic Hanger
TREX-0004-0002 USB cable (USB to micro USB)
TREX-PMDC-1211 Device Communicator communication module
TREX-PMDC-3611 Device Communicator communication module (with 3 years premium coverage)
TREX-PMDP-1211 Device Communicator Plus communication module
REX-PMDP-3611 Device Communicator Plus communication module (with 3 years premium coverage)
TREX-0012-0011 Stand (replacement integral to communication module)(
TREX-0045-0001 Quick Start Guide (Multilingual)
TREX-0049-0001 Resource DVD
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
